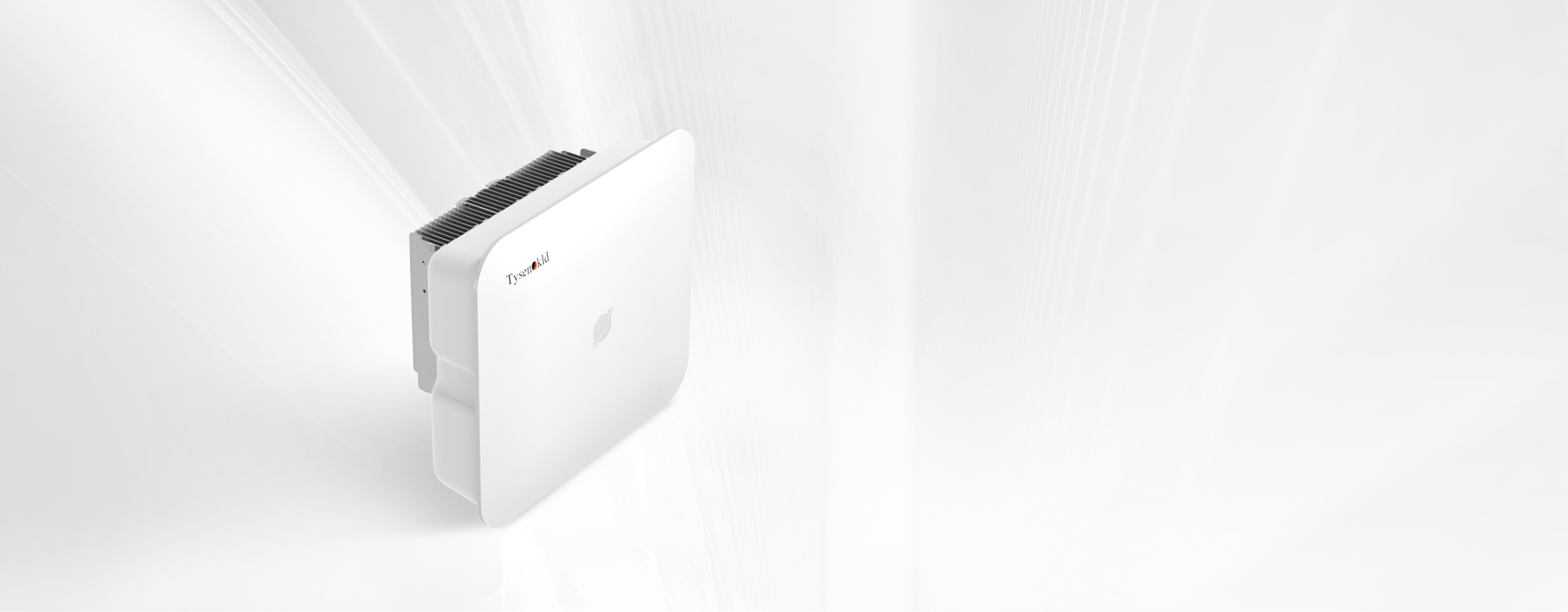

KLD-MS seriyali

bir fazali simli

PV invertori（1-10kVt）

Samarali barqaror Ishonchli

Mahsulotning qisqacha bayoni

KLD-MS seriyadagi bir fazali simli PV invertori jismoniy shaxslar/uy xo‘jaliklari uchun maxsus ishlab chiqilgan invertorlardir. Quvvat diapazoni 1-10 kVt va maksimal bitta simli kirish tok kuchi 26 A, IP65 himoya darajasi esa turli xil murakkab muhitlarga moslasha oladi va u yuqori samarali modullar va ikki tomonlama modullarga to‘liq mos keladi. Yengil dizayn, oddiy o‘rnatish.

Mahsulot xususiyatlari

Ko‘chma va yengil
Moslashuvchan aloqa
Moslashuvchan aloqa
Yuqori samaradorlik
Uzoq xizmat qilish muddati

Moslashuvchan aloqa

Butun mashina tashqi o‘rnatishni
qo‘llab-quvvatlovchi IP65 himoya darajasiga ega

Moslashuvchan aloqa

RS485/WiFi/Simli Ethernet/GPRS ni qo‘llab-quvvatlash.

Texnik parametrlar

Mahsulot modeli KLD-MS1kW-1 KLD-MS3kW-1 KLD-MS5kW-1 KLD-MS6kW-1 KLD-MS8kW-1 KLD-MS10kW-1
Himoya darajasi IP65
Kirish (DC)
Maksimal kirish quvvati (Vt) 1500 4500 7000 8400 11200 14000
Maksimal kirish kuchlanishi ( V ) 500 600
MPPT kuchlanish diapazoni ( V ) 50-500 70-500
MPPT to‘liq yuk kuchlanish diapazoni ( V ) 70-500 110-550 180-550 220-550
Nominal kirish kuchlanishi ( V ) 360
Ishga tushirish kuchlanishi ( V ) 50 70
Maksimal kirish tok kuchi( A ) 14 14+14 14+26 26+26
Qisqa tutashuv tok kuchi ( A ) 18 18+18 18+35 35+35
MPPT/DC terminalar soni 1/1 2/2 2/3 2/4
Chiqish (AC)
Maksimal chiqish quvvati ( VA ) 1100 3300 5500 6600 8800 11000
Belgilangan chiqish(Vt) 1000 3000 5000 6000 8000 10000
Maksimal chiqish tok kuchi ( A ) 6 15 24 28.7 38.3 50
Belgilangan kuchlanish ( V ) L/N/PE, AC220V,AC230V,AC240V
Tarmoq kuchlanish diapazoni 180VAC-276VAC (sozlanishi mumkin)

Eslatma: batafsil parametr uchun materialni yuklab olish sahifasiga qarang

Texnik parametrlar

  • Himoya darajasi：IP65

    Kirish (DC)

    Maksimal kirish quvvati (Vt)：1500

    Maksimal kirish kuchlanishi ( V ) ：500

    MPPT kuchlanish diapazoni ( V )：50-500

    MPPT to‘liq yuk kuchlanish diapazoni ( V )：70-500

    Nominal kirish kuchlanishi ( V )：360

    Ishga tushirish kuchlanishi ( V ) ：50

    Maksimal kirish tok kuchi( A ) ：14

    Qisqa tutashuv tok kuchi ( A )：18

    MPPT/DC terminalar soni：1/1

    Chiqish (AC)

    Maksimal chiqish quvvati ( VA )：1100

    Belgilangan chiqish (Vt)：1000

    Maksimal chiqish tok kuchi ( A )：6

    Belgilangan kuchlanish ( V ) ：L/N/PE, AC220V,AC230V,AC240V

    Tarmoq kuchlanish diapazoni：AC180V-276V (sozlanishi mumkin)

  • Himoya darajasi：IP65

    Kirish (DC)

    Maksimal kirish quvvati (Vt)：4500

    Maksimal kirish kuchlanishi ( V ) ：600

    MPPT kuchlanish diapazoni ( V )：70-500

    MPPT to‘liq yuk kuchlanish diapazoni ( V )：110-550

    Nominal kirish kuchlanishi ( V )：360

    Ishga tushirish kuchlanishi ( V ) ：70

    Maksimal kirish tok kuchi( A ) ：14+14

    Qisqa tutashuv tok kuchi ( A )：18+18

    MPPT/DC terminalar soni：2/2

    Chiqish (AC)

    Maksimal chiqish quvvati ( VA )：3300

    Belgilangan chiqish (Vt)：3000

    Maksimal chiqish tok kuchi ( A )：15

    Belgilangan kuchlanish ( V ) ：L/N/PE, AC220V,AC230V,AC240V

    Tarmoq kuchlanish diapazoni：AC180V-276V (sozlanishi mumkin)

  • Himoya darajasi：IP65

    Kirish (DC)

    Maksimal kirish quvvati (Vt)：7000

    Maksimal kirish kuchlanishi ( V ) ：600

    MPPT kuchlanish diapazoni ( V )：70-500

    MPPT to‘liq yuk kuchlanish diapazoni ( V )：180-550

    Nominal kirish kuchlanishi ( V )：360

    Ishga tushirish kuchlanishi ( V ) ：70

    Maksimal kirish tok kuchi( A ) ：14+14

    Qisqa tutashuv tok kuchi ( A )：18+18

    MPPT/DC terminalar soni：2/2

    Chiqish (AC)

    Maksimal chiqish quvvati( VA )：5500

    Belgilangan chiqish (Vt)：5000

    Maksimal chiqish tok kuchi ( A )：24

    Belgilangan kuchlanish ( V ) ：L/N/PE, AC220V,AC230V,AC240V

    Tarmoq kuchlanish diapazoni：AC180V-276V (sozlanishi mumkin)

  • Himoya darajasi：IP65

    Kirish (DC)

    Maksimal kirish quvvati (Vt)：8400

    Maksimal kirish kuchlanishi ( V ) ：600

    MPPT kuchlanish diapazoni ( V )：70-500

    MPPT to‘liq yuk kuchlanish diapazoni ( V )：220-550

    Nominal kirish kuchlanishi ( V )：360

    Ishga tushirish kuchlanishi ( V ) ：70

    Maksimal kirish tok kuchi( A ) ：14+14

    Qisqa tutashuv tok kuchi ( A )：18+18

    MPPT/DC terminalar soni：2/2

    Chiqish (AC)

    Maksimal chiqish quvvati ( VA )：6600

    Belgilangan chiqish (Vt)：6300

    Maksimal chiqish tok kuchi ( A )：28.7

    Belgilangan kuchlanish ( V ) ：L/N/PE, AC220V,AC230V,AC240V

    Tarmoq kuchlanish diapazoni：AC180V-276V (sozlanishi mumkin)

  • Himoya darajasi：IP65

    Kirish (DC)

    Maksimal kirish quvvati (Vt)：11200

    Maksimal kirish kuchlanishi ( V ) ：600

    MPPT kuchlanish diapazoni ( V )：70-500

    MPPT to‘liq yuk kuchlanish diapazoni ( V )：220-550

    Nominal kirish kuchlanishi ( V )：360

    Ishga tushirish kuchlanishi ( V ) ：70

    Maksimal kirish tok kuchi( A ) ：14+26

    Qisqa tutashuv tok kuchi ( A )：18+35

    MPPT/DC terminalar soni：2/3

    Chiqish (AC)

    Maksimal chiqish quvvati ( VA )：8800

    Belgilangan chiqish (Vt)：8000

    Maksimal chiqish tok kuchi ( A )：38.3

    Belgilangan kuchlanish ( V ) ：L/N/PE, AC220V,AC230V,AC240V

    Tarmoq kuchlanish diapazoni：AC180V-276V (sozlanishi mumkin)

  • Himoya darajasi：IP65

    Kirish (DC)

    Maksimal kirish quvvati (Vt)：14000

    Maksimal kirish kuchlanishi ( V ) ：600

    MPPT kuchlanish diapazoni ( V )：70-500

    MPPT to‘liq yuk kuchlanish diapazoni ( V )：220-550

    Nominal kirish kuchlanishi ( V )：360

    Ishga tushirish kuchlanishi ( V ) ：70

    Maksimal kirish tok kuchi( A ) ：26+26

    Qisqa tutashuv tok kuchi ( A )：35+35

    MPPT/DC terminalar soni：2/4

    Chiqish (AC)

    Maksimal chiqish quvvati ( VA )：11000

    Belgilangan chiqish (Vt)：10000

    Maksimal chiqish tok kuchi ( A )：50

    Belgilangan kuchlanish ( V ) ：L/N/PE, AC220V,AC230V,AC240V

    Tarmoq kuchlanish diapazoni：AC180V-276V (sozlanishi mumkin)
