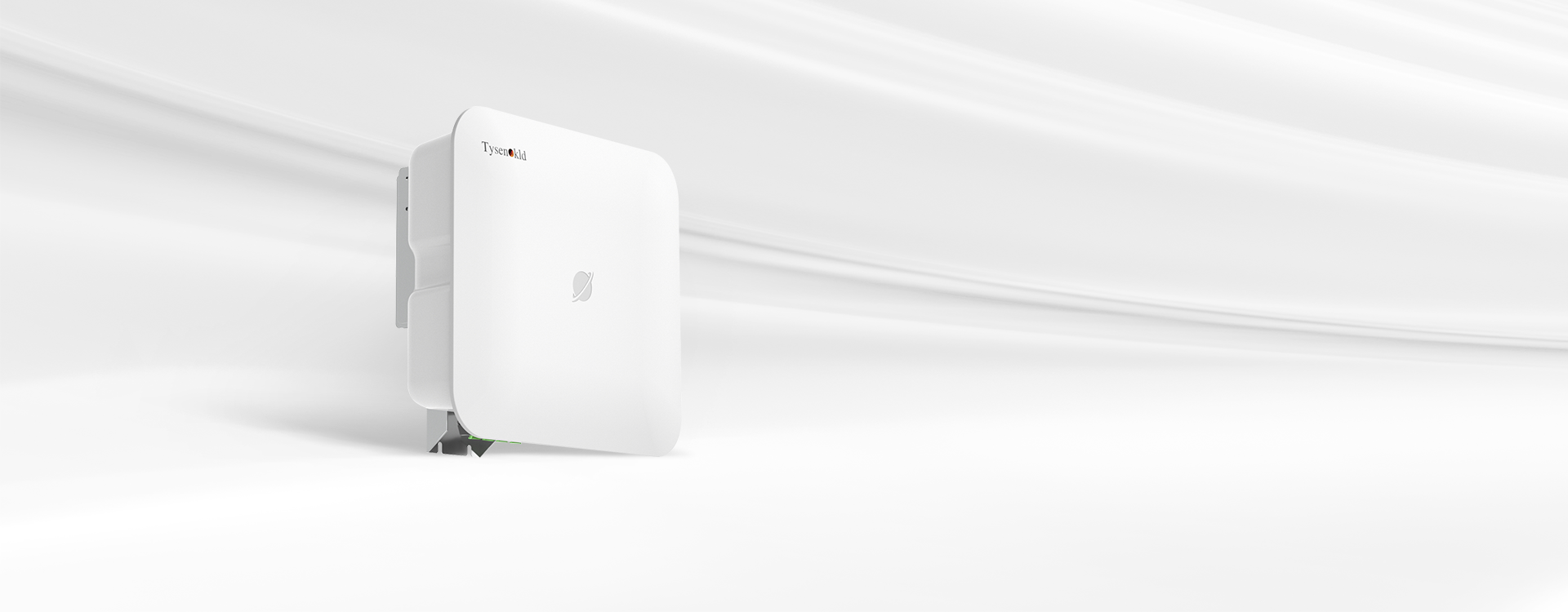

KLD-MS seriyali

uch fazali simli

PV invertori（10-110kVt）

Samarali barqaror Ishonchli

Mahsulotning qisqacha bayoni

KLD-MS seriyadagi uch fazali simli PV invertori turar-joy va kichik sanoat va tijorat PV loyihalariga mos keladi. Quvvat diapazoni 10-110 kVt ni tashkil qiladi va uning maksimal bitta simli kirish tok kuchi 40 A ga etadi, bu yuqori quvvatli komponentlarga to‘liq mos keladi; U yuqori super konfiguratsiya, yuqori samaradorlik, keng MPPT kuchlanish diapazoni, kichik mahsulot hajmi, yengil vazn, oson o‘rnatish va texnik xizmat ko‘rsatish xususiyatlariga ega.

Mahsulot xususiyatlari

Ko‘chma va yengil
Xavotirsiz ikki baravar kafolat
Barqaror va ishonchli

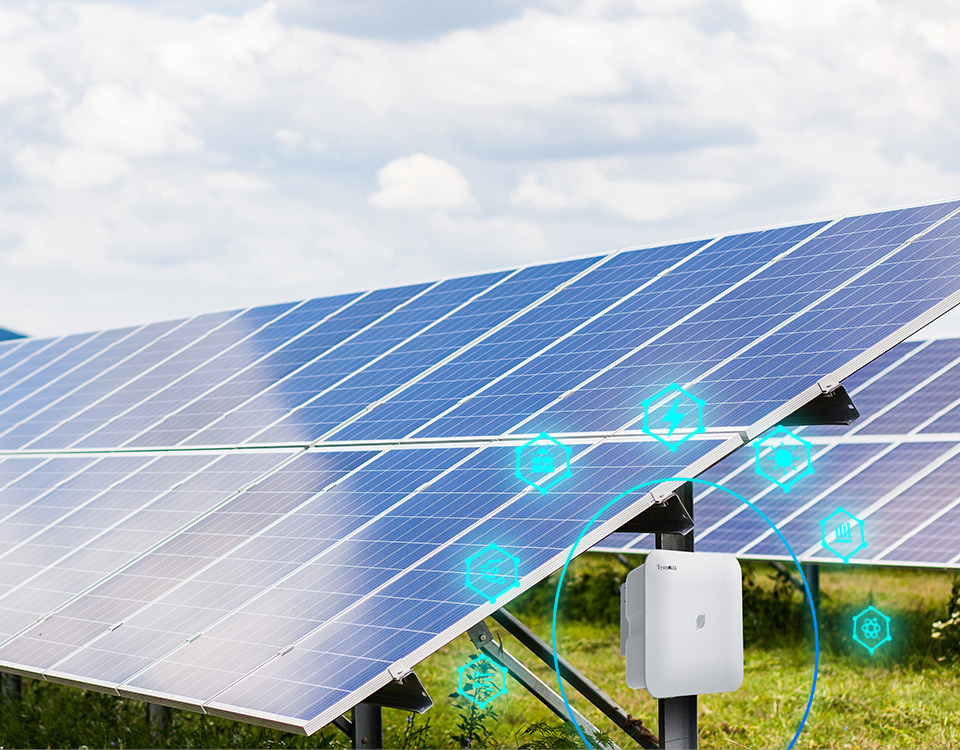

Moslashuvchan aloqa
Moslashuvchan aloqa
Uch fazali sozlash

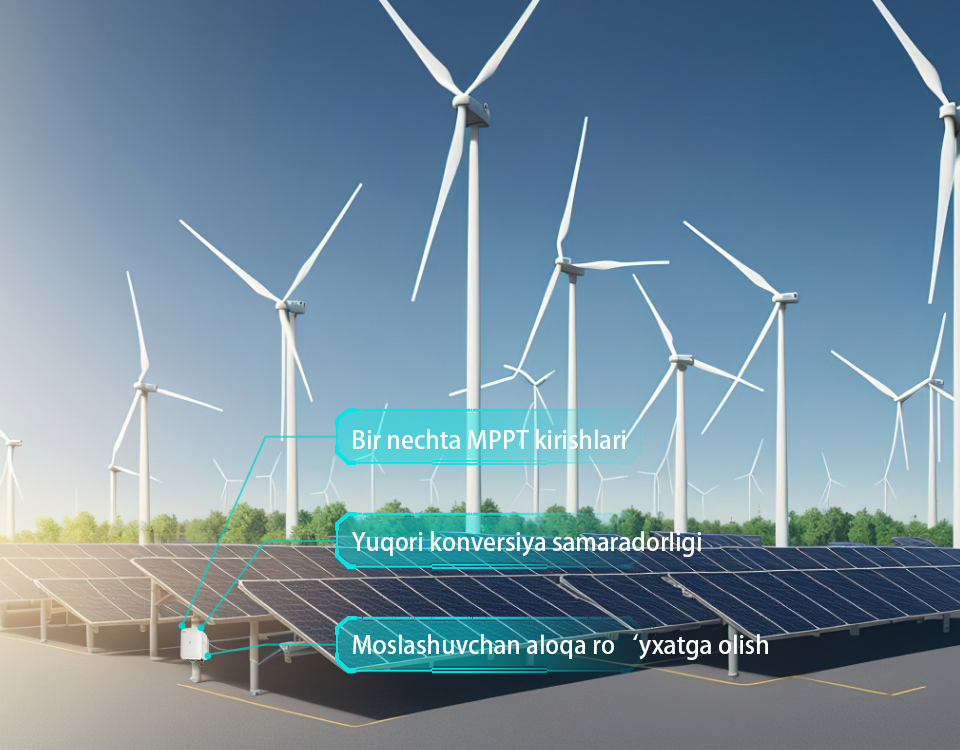

Samarali elektr ishlab chiqarish

Yuqori konversiya samaradorligi

Yuqori samaradorlikka ega topologiya turli xil nurlanish sharoitida yuqori konversiya samaradorligini ta’minlaydi

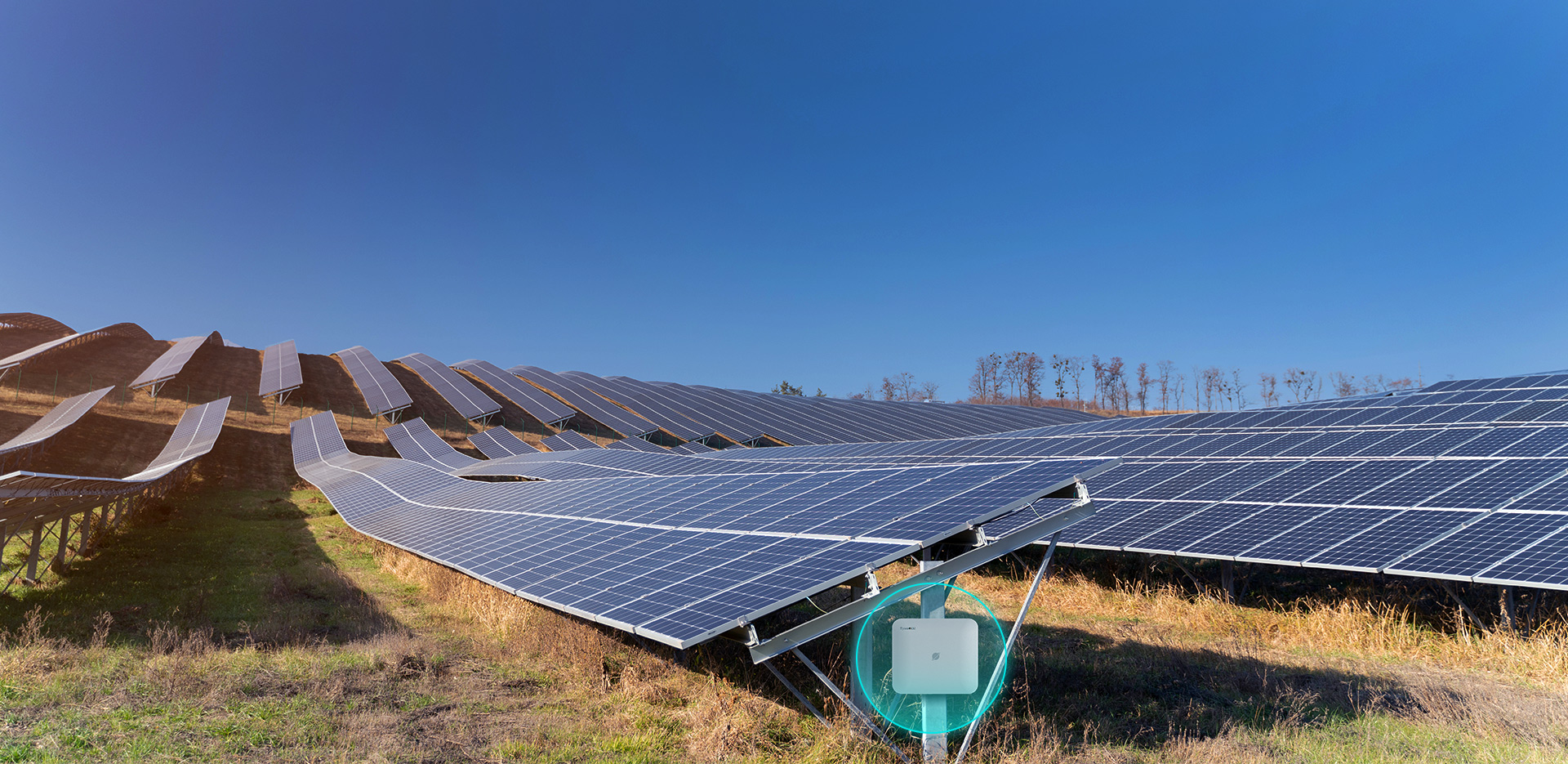

Kuzatuv kronshteynini boshqarishning aqlli algoritmi

Ixtiyoriy bitta o‘qli, ikki o‘qli va qiya o‘qlar murakkab yer va turli ob-havo ssenariylariga dosh bera oladi, optimal kuzatuv burchaklariga erishadi va energiya ishlab chiqarish samaradorligini oshiradi.

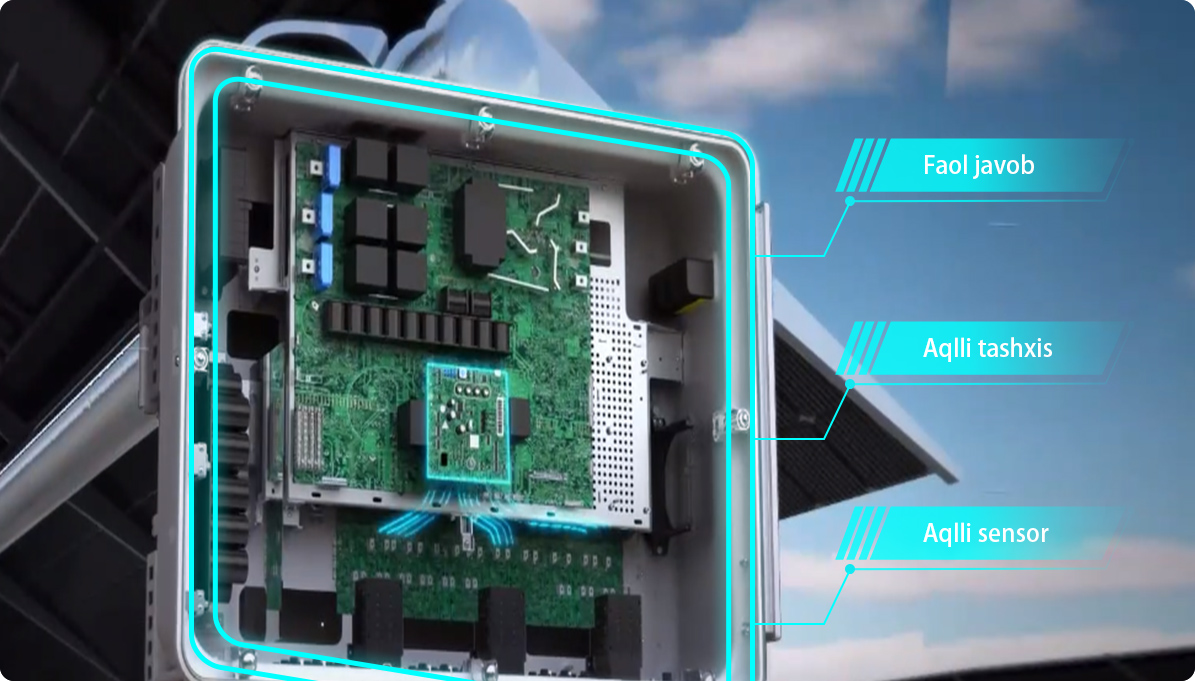

Xavfsiz va ishonchli

O‘zgarmas tok tomoni ikki tomonlama xavfsizlik himoyasi - aqlli simli uzilish

To‘liq ssenariy, yuqori aniqlik, o‘zgaruvchan tok me’yordan chetlanishlarini faol aniqlash, tizimning o‘zgarmas tok tomoni xavfsizligini ta’minlash uchun millisekundlar darajasidagi tezkor javob.

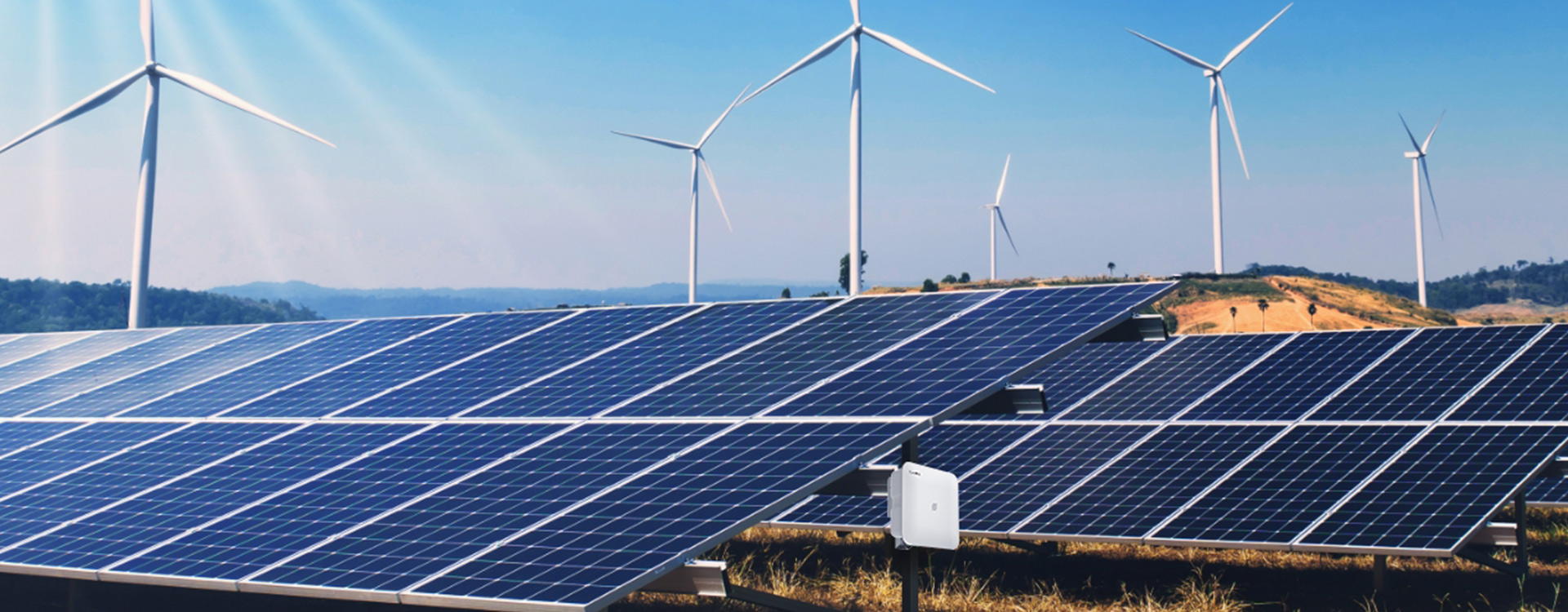

Elektr tarmog‘iqa mos

  • Juda zaif elektr
    tarmog‘qa moslashish
  • SCR=1.1/THDi＜1%

to‘liq quvvat bilan ishlash + yaxshi quvvat sifati

  • Ultra yuqori kuchlanishli
    tarmog o‘zgaruvchan tok
  • SCCR=0.7/SCR=1.1

seriyali kompensatsiya + zaif va murakkab elektr tarmoqlariga moslashish

  • Ultra yuqori kuchlanishli
    o‘zgarmas tok
  • GB 37408

muvofiqligi Yuqori kuchlanishli o‘tish quvvati ishlab chiqarishni kamaytirmaydi

Texnik parametrlar

Mahsulot modeli KLD-MS10kW-3 KLD-MS20kW-3 KLD-MS30kW-3 KLD-MS50kW-3 KLD-MS60kW-3 KLD-MS80kW-3 KLD-MS100kW-3 KLD-MS110kW-3
Himoya darajasi IP65
Kirish (DC)
Maksimal kirish quvvati (Vt) 15000 30000 45000 75000 90000 120000 150000 165000
Maksimal kirish kuchlanishi (V) 1100
MPPT kuchlanish diapazoni (V) 150-1000 200-1000
MPPT to‘liq yuk kuchlanish diapazoni (V) 500-850
Nominal kirish kuchlanishi ( V ) 620
Ishga tushirish kuchlanishi ( V ) 150 200
Maksimal kirish tok kuchi (A) 15*2 32*2 38*2 40*3 38*4 38*6
Qisqa tutashuv tok kuchi ( A ) 25*2 48*2 48*2 48*3 48*4 48*6
MPPT/DC terminalar soni 2/2 2/4 2/5 3/7 4/8 6/12
Chiqish (AC)
Maksimal chiqish quvvati (VA) 11000 22000 33000 55000 66000 88000 110000 110000
Belgilangan chiqish (Vt) 10000 20000 30000 50000 60000 80000 100000 110000
Maksimal chiqish tok kuchi (A) 17 32 48 80 96 127 158 158
Belgilangan kuchlanish ( V ) 3P+N+PE/3P+PE AC230/400
Tarmoq kuchlanish diapazoni AC260V-519V (sozlanishi mumkin)
Samaradorlik
Maksimal samaradorlik 98.70% 98.75% 98.50% 98.80% 99.00%
Xitoy samaradorligi 98.23% 98.35% 98.10% 98.45% 98.50% 98.30% 98.40%

Eslatma: batafsil parametr uchun materialni yuklab olish sahifasiga qarang

Texnik parametrlar

  • Himoya darajasi：IP65

    Kirish (DC)

    Maksimal kirish quvvati (Vt)：15000

    Maksimal kirish kuchlanishi (V)：1100

    MPPT kuchlanish diapazoni (V)：150-1000

    MPPT to‘liq yuk kuchlanish diapazoni (V)：500-850

    Nominal kirish kuchlanishi ( V )：620

    Ishga tushirish kuchlanishi ( V ) ：150

    Maksimal kirish tok kuchi (A)：15*2

    Qisqa tutashuv tok kuchi ( A )：25*2

    MPPT/DC terminalar soni：2/2

    Chiqish (AC)

    Maksimal kirish quvvati (VA)：11000

    Belgilangan chiqish (Vt)：10000

    Maksimal chiqish tok kuchi (A)：17

    Belgilangan kuchlanish ( V )：3P+N+PE/3P+PE AC230/400

    Tarmoq kuchlanish diapazoni：AC260V-519V (sozlanishi mumkin)

    Samaradorlik

    Maksimal samaradorlik：98.70%

    Xitoy samaradorligi：98.23%

  • Himoya darajasi：IP65

    Kirish (DC)

    Maksimal kirish quvvati (Vt)：30000

    Maksimal kirish kuchlanishi (V)：1100

    MPPT kuchlanish diapazoni (V)：150-1000

    MPPT to‘liq yuk kuchlanish diapazoni (V)：500-850

    Nominal kirish kuchlanishi ( V )：620

    Ishga tushirish kuchlanishi ( V ) ：150

    Maksimal kirish tok kuchi (A)：32*2

    Qisqa tutashuv tok kuchi ( A )：48*2

    MPPT/DC terminalar soni：2/4

    Chiqish (AC)

    Maksimal kirish quvvati (VA)：22000

    Belgilangan chiqish (Vt)：20000

    Maksimal chiqish tok kuchi (A)：32

    Belgilangan kuchlanish ( V )：3P+N+PE/3P+PE AC230/400

    Tarmoq kuchlanish diapazoni：AC260V-519V (sozlanishi mumkin)

    Samaradorlik

    Maksimal samaradorlik：98.75%

    Xitoy samaradorligi：98.35%

  • Himoya darajasi：IP65

    Kirish (DC)

    Maksimal kirish quvvati (Vt)：45000

    Maksimal kirish kuchlanishi (V)：1100

    MPPT kuchlanish diapazoni (V)：200-1000

    MPPT to‘liq yuk kuchlanish diapazoni (V)：500-850

    Nominal kirish kuchlanishi ( V )：620

    Ishga tushirish kuchlanishi ( V ) ：200

    Maksimal kirish tok kuchi (A)：38*2

    Qisqa tutashuv tok kuchi ( A )：48*2

    MPPT/DC terminalar soni：2/5

    Chiqish (AC)

    Maksimal kirish quvvati (VA)：33000

    Belgilangan chiqish (Vt)：30000

    Maksimal chiqish tok kuchi (A)：48

    Belgilangan kuchlanish ( V )：3P+N+PE/3P+PE AC230/400

    Tarmoq kuchlanish diapazoni：AC260V-519V (sozlanishi mumkin)

    Samaradorlik

    Maksimal samaradorlik：98.50%

    Xitoy samaradorligi：98.10%

  • Himoya darajasi：IP65

    Kirish (DC)

    Maksimal kirish quvvati (Vt)：75000

    Maksimal kirish kuchlanishi (V)：1100

    MPPT kuchlanish diapazoni (V)：200-1000

    MPPT to‘liq yuk kuchlanish diapazoni (V)：500-850

    Nominal kirish kuchlanishi ( V )：620

    Ishga tushirish kuchlanishi ( V ) ：200

    Maksimal kirish tok kuchi (A)：40*3

    Qisqa tutashuv tok kuchi ( A )：48*3

    MPPT/DC terminalar soni：3/7

    Chiqish (AC)

    Maksimal kirish quvvati (VA)：55000

    Belgilangan chiqish (Vt)：50000

    Maksimal chiqish tok kuchi (A)：80

    Belgilangan kuchlanish ( V )：3P+N+PE/3P+PE AC230/400

    Tarmoq kuchlanish diapazoni：AC260V-519V (sozlanishi mumkin)

    Samaradorlik

    Maksimal samaradorlik：98.80%

    Xitoy samaradorligi：98.45%

  • Himoya darajasi：IP65

    Kirish (DC)

    Maksimal kirish quvvati (Vt)：90000

    Maksimal kirish kuchlanishi (V)：1100

    MPPT kuchlanish diapazoni (V)：200-1000

    MPPT to‘liq yuk kuchlanish diapazoni (V)：500-850

    Nominal kirish kuchlanishi ( V )：620

    Ishga tushirish kuchlanishi ( V ) ：200

    Maksimal kirish tok kuchi (A)：38*4

    Qisqa tutashuv tok kuchi ( A )：48*4

    MPPT/DC terminalar soni：4/8

    Chiqish (AC)

    Maksimal kirish quvvati (VA)：66000

    Belgilangan chiqish (Vt)：60000

    Maksimal chiqish tok kuchi (A)：96

    Belgilangan kuchlanish ( V )：3P+N+PE/3P+PE AC230/400

    Tarmoq kuchlanish diapazoni：AC260V-519V (sozlanishi mumkin)

    Samaradorlik

    Maksimal samaradorlik：99.00%

    Xitoy samaradorligi：98.50%

  • Himoya darajasi：IP65

    Kirish (DC)

    Maksimal kirish quvvati (Vt)：120000

    Maksimal kirish kuchlanishi (V)：1100

    MPPT kuchlanish diapazoni (V)：200-1000

    MPPT to‘liq yuk kuchlanish diapazoni (V)：500-850

    Nominal kirish kuchlanishi ( V )：620

    Ishga tushirish kuchlanishi ( V ) ：200

    Maksimal kirish tok kuchi (A)：38*6

    Qisqa tutashuv tok kuchi ( A )：48*6

    MPPT/DC terminalar soni：6/12

    Chiqish (AC)

    Maksimal kirish quvvati (VA)：88000

    Belgilangan chiqish (Vt)：80000

    Maksimal chiqish tok kuchi (A)：127

    Belgilangan kuchlanish ( V )：3P+N+PE/3P+PE AC230/400

    Tarmoq kuchlanish diapazoni：AC260V-519V (sozlanishi mumkin)

    Samaradorlik

    Maksimal samaradorlik：99.00%

    Xitoy samaradorligi：98.30%

  • Himoya darajasi：IP65

    Kirish (DC)

    Maksimal kirish quvvati (Vt)：150000

    Maksimal kirish kuchlanishi (V)：1100

    MPPT kuchlanish diapazoni (V)：200-1000

    MPPT to‘liq yuk kuchlanish diapazoni (V)：500-850

    Nominal kirish kuchlanishi ( V )：620

    Ishga tushirish kuchlanishi ( V ) ：200

    Maksimal kirish tok kuchi (A)：38*6

    Qisqa tutashuv tok kuchi ( A )：48*6

    MPPT/DC terminalar soni：6/12

    Chiqish (AC)

    Maksimal kirish quvvati (VA)：110000

    Belgilangan chiqish (Vt)：100000

    Maksimal chiqish tok kuchi (A)：158

    Belgilangan kuchlanish ( V )：3P+N+PE/3P+PE AC230/400

    Tarmoq kuchlanish diapazoni：AC260V-519V(sozlanishi mumkin)

    Samaradorlik

    Maksimal samaradorlik：99.00%

    Xitoy samaradorligi：98.40%

  • Himoya darajasi：IP65

    Kirish (DC)

    Maksimal kirish quvvati (Vt)：165000

    Maksimal kirish kuchlanishi (V)：1100

    MPPT kuchlanish diapazoni (V)：200-1000

    MPPT to‘liq yuk kuchlanish diapazoni (V)：500-850

    Nominal kirish kuchlanishi ( V )：620

    Ishga tushirish kuchlanishi ( V ) ：200

    Maksimal kirish tok kuchi (A)：38*6

    Qisqa tutashuv tok kuchi ( A )：48*6

    MPPT/DC terminalar soni：6/12

    Chiqish (AC)

    Maksimal kirish quvvati (VA)：110000

    Belgilangan chiqish (Vt)：110000

    Maksimal chiqish tok kuchi (A)：158

    Belgilangan kuchlanish ( V )：3P+N+PE/3P+PE AC230/400

    Tarmoq kuchlanish diapazoni：AC260V-519V (sozlanishi mumkin)

    Samaradorlik

    Maksimal samaradorlik：99.00%

    Xitoy samaradorligi：98.40%
