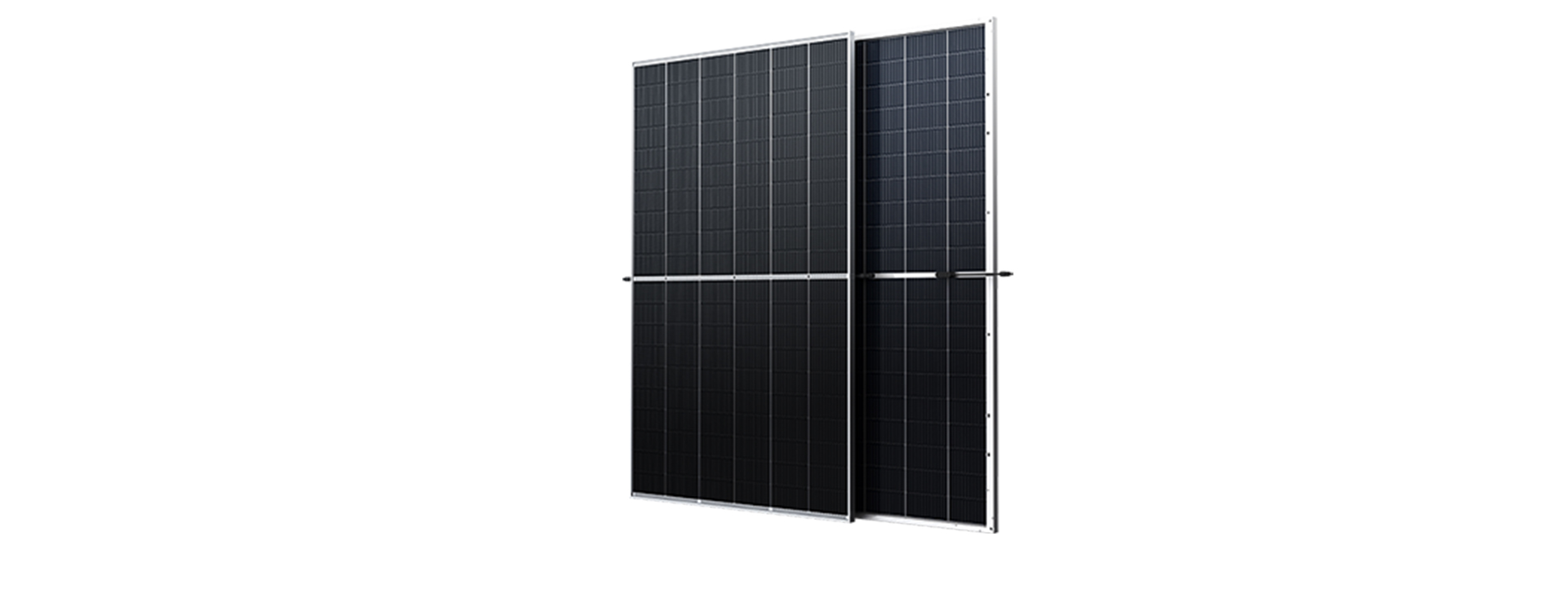

KLD-NW seriyali
KLD-NW seriyadagi ikki tomonlama quyosh
PV moduli（490-715W）
Xavfsiz
Ishonchli

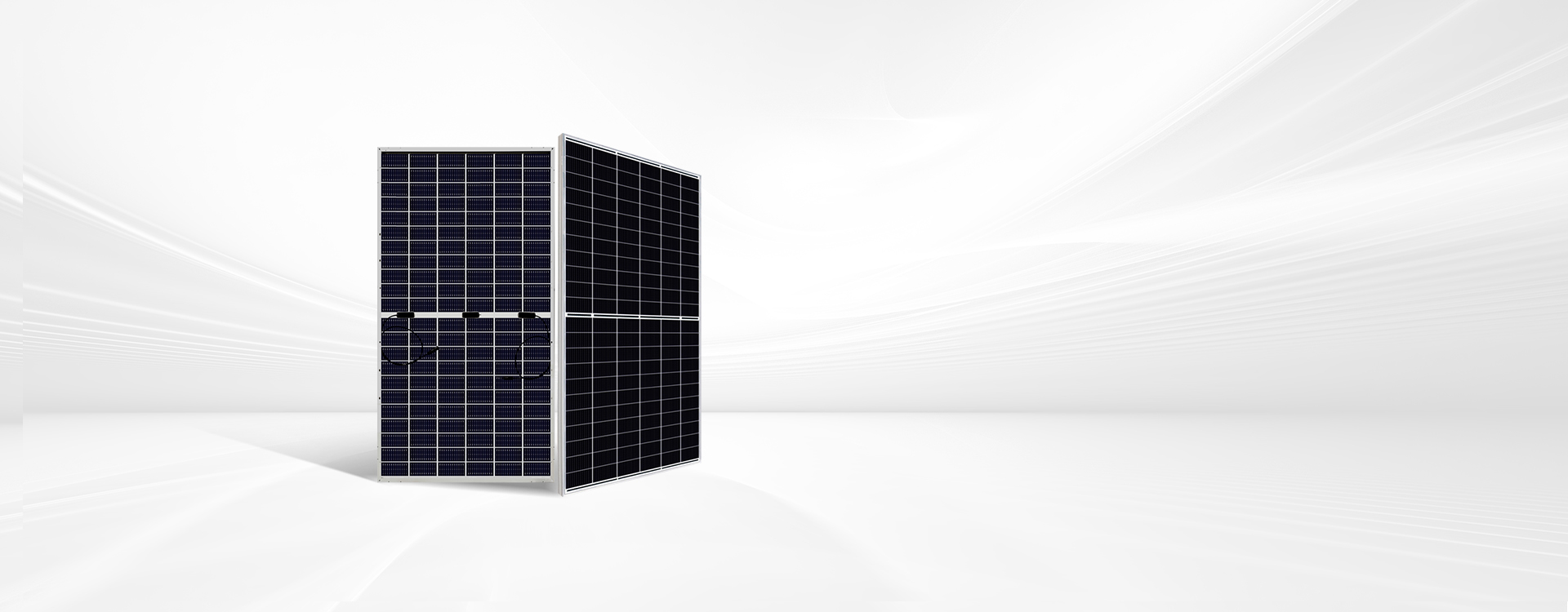

KLD-NW seriyali
KLD-NW seriyadagi ikki tomonlama quyosh
PV moduli（490-715W）
KLD-NW seriyadagi ikki tomonlama quyosh PV moduli quyosh energiyasi manbalaridan yaxshiroq foydalanishi mumkin. Ikki tomonlama modullarning har bir tomoni yorug‘likni singdirish tezligini maksimal darajada oshirish va samaradorlikni 20% gacha oshirish uchun maxsus ishlov berilgan.

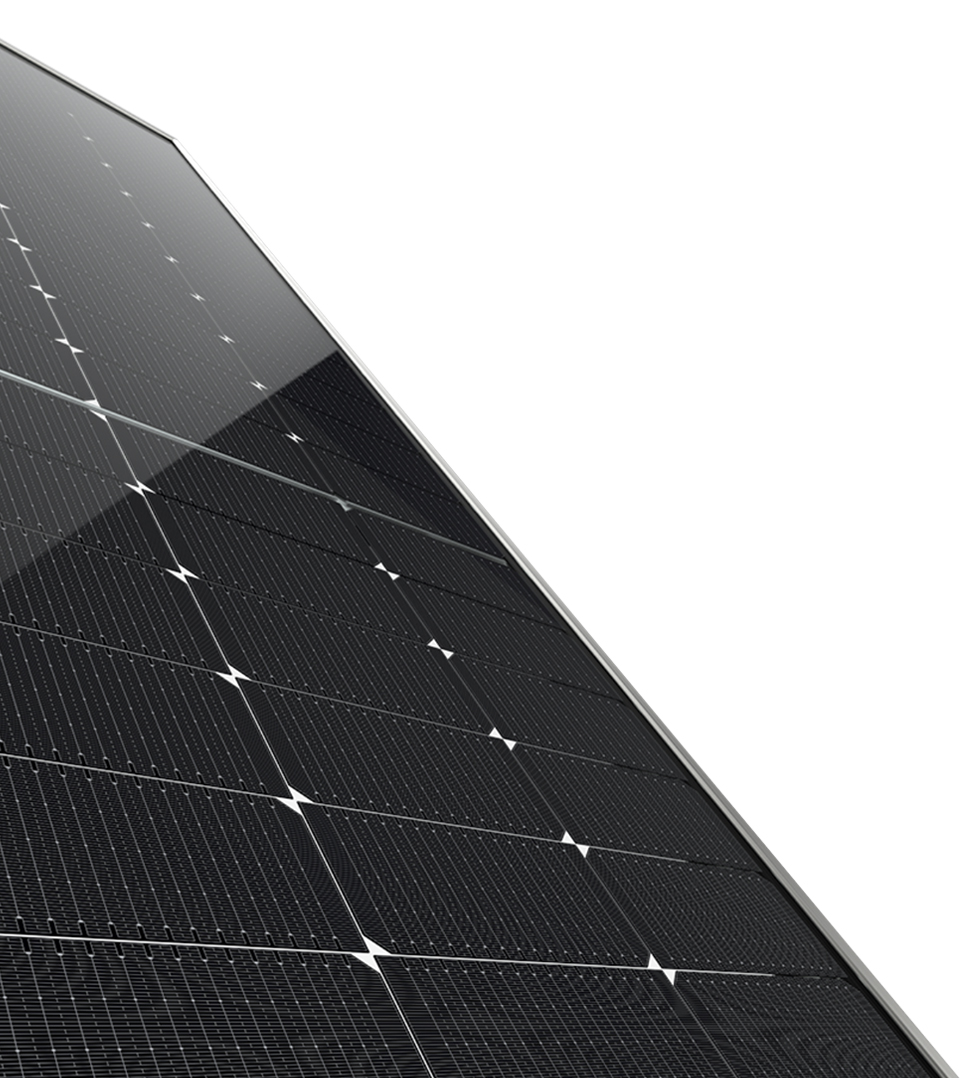

Mono-kristalli kremniy batareya qismi, issiq nuqtalar xavfi past, soyali to'siq ostida quvvat chiqishining ta'sirini samarali kamaytiradi.
Yuqori ishlab chiqarilgan quvvat uchun 210 mm silikon gofretlar + 132/120 ikki tomonlama yarim kesilgan yacheykaralar.
Ikki tomonlama samaradorlik, yuqori energiya ishlab chiqarish, tizimning arzonligi, energiyaning tenglashtirilgan narxini kamaytirishga qodir..
N tupdagi, ikki tomonlama va 210 ixtiyoriy; har xil turdagi tomlar uchun mos keladi; mahkamlangan va kuzatuv turi ixtiyoriy.
Ikki tomonlama samaradorlik, yuqori ishlab chiqarish, past tizim narxi, energiyaning tenglashtirilgan narxini kamaytirishga qodir.
20% samaradorlikka va ko‘proq quvvat ishlab chiqarishga ega bo‘lgan ikki tomonlama modular

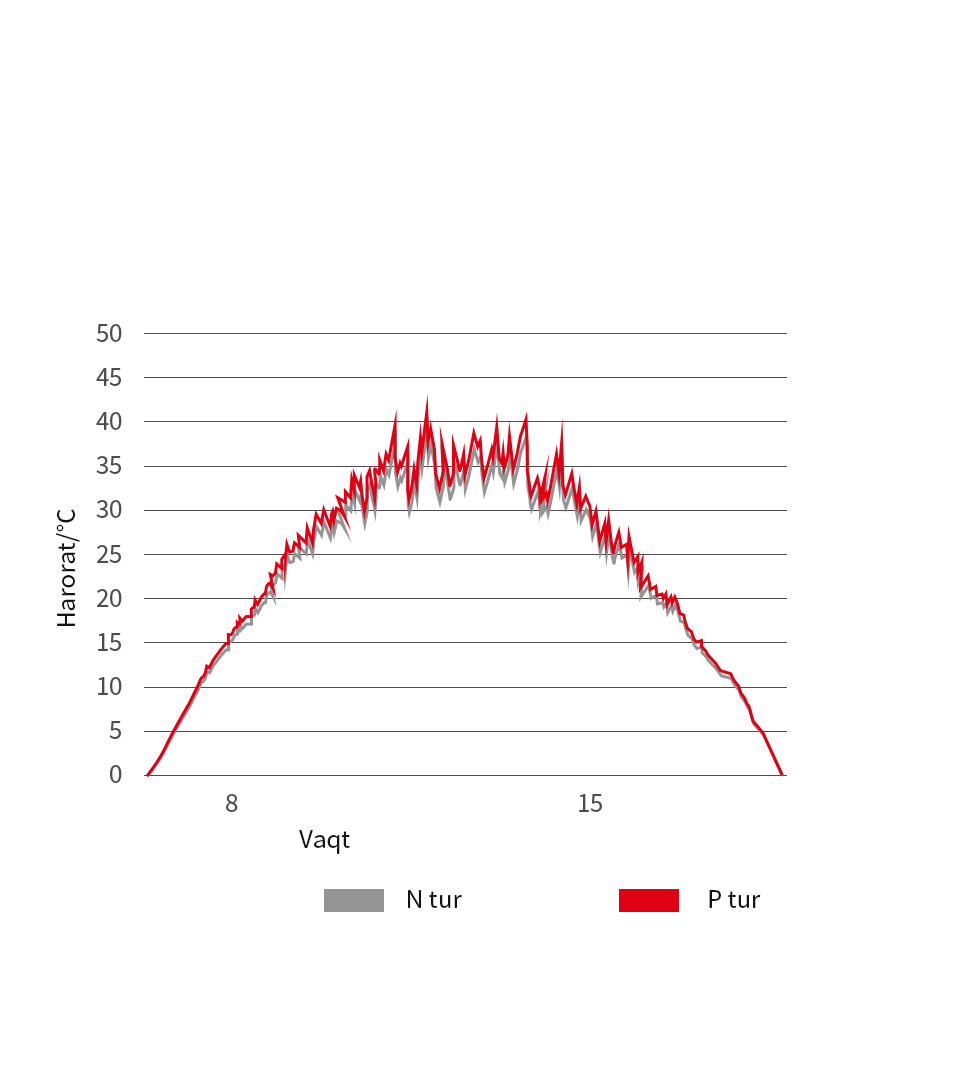

N/P modulining haqiqiy vaqtlardagi ishlash harorati
KLD-NW seriyadagi ikki tomonlama quyosh PV moduli
| Mahsulot modeli | Maksimal chiqish quvvati (Pmax) | Optimal ishlatish kuchlanishi（Vmp） | Optimal ishlash tok kuchi(Imp) | Ochiq zanjir kuchlanishi (Voc) | Qisqa tutashuv tok kuchi (Isc) | Komponent samaradorligi | |
| KLD-NW580 | 580W | 34.1V | 17.02A | 40.5V | 18.27A | 20,50% | |
| Ikki tomonlama foyda | 5% | 609W | 34.1V | 17.87A | 40.5V | 19.18A | 21.50% |
| 10% | 638W | 34.1V | 18.72A | 40.5V | 20.10A | 22.50% | |
| 20% | 696W | 34.1V | 20.42A | 40.5V | 21.92A | 24.60% | |
| KLD-NW590 | 590W | 34.5V | 17.11A | 40.9V | 18.37A | 20.80% | |
| Ikki tomonlama foyda | 5% | 620W | 34.5V | 17.98A | 40.9V | 19.29A | 21.90% |
| 10% | 649W | 34.5V | 18.82A | 40.9V | 20.21A | 22.90% | |
| 20% | 708W | 34.5V | 20.53A | 40.9V | 22.04A | 25.00% | |
| KLD-NW600 | 600W | 34.9V | 17.20A | 41.3V | 18.47A | 21.20% | |
| Ikki tomonlama foyda | 5% | 630W | 34.9V | 18.06A | 41.3V | 19.39A | 22.30% |
| 10% | 660W | 34.9V | 18.92A | 41.3V | 20.32A | 23.30% | |
| 20% | 720W | 34.9V | 20.64A | 41.3V | 22.16A | 25.40% | |
| KLD-NW605 | 605W | 35.1V | 17.25A | 40.5V | 18.52A | 21.40% | |
| Ikki tomonlama foyda | 5% | 635W | 35.1V | 18.11A | 41.5V | 19.45A | 22.40% |
| 10% | 666W | 35.1V | 18.98A | 41.5V | 20.37A | 23.50% | |
| 20% | 726W | 35.1V | 20.07A | 41.5V | 22.22A | 25.70% | |
| KLD-NW610 | 610W | 35.3V | 17.29A | 41.7V | 18.57A | 21.60% | |
| Ikki tomonlama foyda | 5% | 641W | 35.3V | 18.15A | 40.7V | 19.50A | 22.60% |
| 10% | 671W | 35.3V | 19.02A | 40.7V | 20.43A | 23.70% | |
| 20% | 732W | 35.3V | 20.75A | 40.7V | 22.28A | 25.90% | |
| KLD-NW690 | 690W | 39.6V | 17.43A | 47.5V | 18.39A | 22.20% | |
| Ikki tomonlama foyda | 5% | 725W | 39.6V | 18.30A | 47.5V | 19.31A | 23.30% |
| 10% | 759W | 39.6V | 19.17A | 47.5V | 20.23A | 24.40% | |
| 20% | 828W | 39.6V | 20.92A | 47.5V | 22.07A | 26.70% | |
| KLD-NW700 | 700W | 40.0V | 17.51A | 47.9V | 18.49A | 22.50% | |
| Ikki tomonlama foyda | 5% | 730W | 40.0V | 18.39A | 47.9V | 19.41A | 23.70% |
| 10% | 770W | 40.0V | 19.26A | 47.9V | 20.34A | 24.80% | |
| 20% | 840W | 40.0V | 21.01A | 47.9V | 22.19A | 27.0% | |
KLD-NW seriyadagi ikki tomonlama quyosh PV moduli
Maksimal chiqish quvvati (Pmax)：580W
Optimal ishlatish kuchlanishi（Vmp）：34.1V
Optimal ishlash tok kuchi(Imp)：17.02A
Ochiq zanjir kuchlanishi (Voc)：40.5V
Qisqa tutashuv tok kuchi (Isc)：18.27A
Komponent samaradorligi：20.50%
Ikki tomonlama foyda：5%
Maksimal chiqish quvvati (Pmax)：609W
Optimal ishlatish kuchlanishi（Vmp）：34.1V
Optimal ishlash tok kuchi(Imp)：17.87A
Ochiq zanjir kuchlanishi (Voc)：40.5V
Qisqa tutashuv tok kuchi (Isc)：19.18A
Komponent samaradorligi：21.50%
Ikki tomonlama foyda：10%
Maksimal chiqish quvvati (Pmax)：638W
Optimal ishlatish kuchlanishi（Vmp）：34.1V
Optimal ishlash tok kuchi(Imp)：18.72A
Ochiq zanjir kuchlanishi (Voc)：40.5V
Qisqa tutashuv tok kuchi (Isc)：20.10A
Komponent samaradorligi：22.50%
Ikki tomonlama foyda：20%
Maksimal chiqish quvvati (Pmax)：696W
Optimal ishlatish kuchlanishi（Vmp）：34.1V
Optimal ishlash tok kuchi(Imp)：20.42A
Ochiq zanjir kuchlanishi (Voc)：40.5V
Qisqa tutashuv tok kuchi (Isc)：21.92A
Komponent samaradorligi：24.60%
Maksimal chiqish quvvati (Pmax)：590W
Optimal ishlatish kuchlanishi（Vmp）：34.5V
Optimal ishlash tok kuchi(Imp)：17.11A
Ochiq zanjir kuchlanishi (Voc)：40.9V
Qisqa tutashuv tok kuchi (Isc)：18.37A
Komponent samaradorligi：20.80%
Ikki tomonlama foyda：5%
Maksimal chiqish quvvati (Pmax)：620W
Optimal ishlatish kuchlanishi（Vmp）：34.5V
Optimal ishlash tok kuchi(Imp)：17.98A
Ochiq zanjir kuchlanishi (Voc)：40.9V
Qisqa tutashuv tok kuchi (Isc)：19.29A
Komponent samaradorligi：21.90%
Ikki tomonlama foyda：10%
Maksimal chiqish quvvati (Pmax)：649W
Optimal ishlatish kuchlanishi（Vmp）：34.5V
Optimal ishlash tok kuchi(Imp)：18.82A
Ochiq zanjir kuchlanishi (Voc)：40.9V
Qisqa tutashuv tok kuchi (Isc)：20.21A
Komponent samaradorligi：22.90%
Ikki tomonlama foyda：20%
Maksimal chiqish quvvati (Pmax)：708W
Optimal ishlatish kuchlanishi（Vmp）：34.5V
Optimal ishlash tok kuchi(Imp)：20.53A
Ochiq zanjir kuchlanishi (Voc)：40.9V
Qisqa tutashuv tok kuchi (Isc)：22.04A
Komponent samaradorligi：25.00%
Maksimal chiqish quvvati (Pmax)：600W
Optimal ishlatish kuchlanishi（Vmp）：34.9V
Optimal ishlash tok kuchi(Imp)：18.06A
Ochiq zanjir kuchlanishi (Voc)：41.3V
Qisqa tutashuv tok kuchi (Isc)：18.47A
Komponent samaradorligi：21.20%
Ikki tomonlama foyda：5%
Maksimal chiqish quvvati (Pmax)：630W
Optimal ishlatish kuchlanishi（Vmp）：34.9V
Optimal ishlash tok kuchi(Imp)：18.06A
Ochiq zanjir kuchlanishi (Voc)：41.3V
Qisqa tutashuv tok kuchi (Isc)：19.39A
Komponent samaradorligi：22.30%
Ikki tomonlama foyda：10%
Maksimal chiqish quvvati (Pmax)：660W
Optimal ishlatish kuchlanishi（Vmp）：34.9V
Optimal ishlash tok kuchi(Imp)：18.92A
Ochiq zanjir kuchlanishi (Voc)：41.3V
Qisqa tutashuv tok kuchi (Isc)：20.32A
Komponent samaradorligi：23.30%
Ikki tomonlama foyda：20%
Maksimal chiqish quvvati (Pmax)：720W
Optimal ishlatish kuchlanishi（Vmp）：34.9V
Optimal ishlash tok kuchi(Imp)：20.64A
Ochiq zanjir kuchlanishi (Voc)：41.3V
Qisqa tutashuv tok kuchi (Isc)：22.16A
Komponent samaradorligi：25.40%
Maksimal chiqish quvvati (Pmax)：605W
Optimal ishlatish kuchlanishi（Vmp）：35.1V
Optimal ishlash tok kuchi(Imp)：17.25A
Ochiq zanjir kuchlanishi (Voc)：40.5V
Qisqa tutashuv tok kuchi (Isc)：18.52A
Komponent samaradorligi：21.40%
Ikki tomonlama foyda：5%
Maksimal chiqish quvvati (Pmax)：635W
Optimal ishlatish kuchlanishi（Vmp）：35.1V
Optimal ishlash tok kuchi(Imp)：18.11A
Ochiq zanjir kuchlanishi (Voc)：41.5V
Qisqa tutashuv tok kuchi (Isc)：19.45A
Komponent samaradorligi：22.40%
Ikki tomonlama foyda：10%
Maksimal chiqish quvvati (Pmax)：666W
Optimal ishlatish kuchlanishi（Vmp）：35.1V
Optimal ishlash tok kuchi(Imp)：18.98A
Ochiq zanjir kuchlanishi (Voc)：41.5V
Qisqa tutashuv tok kuchi (Isc)：20.37A
Komponent samaradorligi：23.50%
Ikki tomonlama foyda：20%
Maksimal chiqish quvvati (Pmax)：726W
Optimal ishlatish kuchlanishi（Vmp）：35.1V
Optimal ishlash tok kuchi(Imp)：20.07A
Ochiq zanjir kuchlanishi (Voc)：41.5V
Qisqa tutashuv tok kuchi (Isc)：22.22A
Komponent samaradorligi：25.70%
Maksimal chiqish quvvati (Pmax)：610W
Optimal ishlatish kuchlanishi（Vmp）：35.3V
Optimal ishlash tok kuchi(Imp)：17.29A
Ochiq zanjir kuchlanishi (Voc)：41.7V
Qisqa tutashuv tok kuchi (Isc)：18.57A
Komponent samaradorligi：21.60%
Ikki tomonlama foyda：5%
Maksimal chiqish quvvati (Pmax)：641W
Optimal ishlatish kuchlanishi（Vmp）：35.3V
Optimal ishlash tok kuchi(Imp)：18.15A
Ochiq zanjir kuchlanishi (Voc)：40.7V
Qisqa tutashuv tok kuchi (Isc)：19.50A
Komponent samaradorligi：22.60%
Ikki tomonlama foyda：10%
Maksimal chiqish quvvati (Pmax)：671W
Optimal ishlatish kuchlanishi（Vmp）：35.3V
Optimal ishlash tok kuchi(Imp)：19.02A
Ochiq zanjir kuchlanishi (Voc)：40.7V
Qisqa tutashuv tok kuchi (Isc)：20.43A
Komponent samaradorligi：23.70%
Ikki tomonlama foyda：20%
Maksimal chiqish quvvati (Pmax)：732W
Optimal ishlatish kuchlanishi（Vmp）：35.3V
Optimal ishlash tok kuchi(Imp)：20.75A
Ochiq zanjir kuchlanishi (Voc)：40.7V
Qisqa tutashuv tok kuchi (Isc)：22.28A
Komponent samaradorligi：25.90%
Maksimal chiqish quvvati (Pmax)：690W
Optimal ishlatish kuchlanishi（Vmp）：39.6V
Optimal ishlash tok kuchi(Imp)：17.43A
Ochiq zanjir kuchlanishi (Voc)：47.5V
Qisqa tutashuv tok kuchi (Isc)：18.39A
Komponent samaradorligi：22.20%
Ikki tomonlama foyda：5%
Maksimal chiqish quvvati (Pmax)：725W
Optimal ishlatish kuchlanishi（Vmp）：39.6V
Optimal ishlash tok kuchi(Imp)：18.30A
Ochiq zanjir kuchlanishi (Voc)：47.5V
Qisqa tutashuv tok kuchi (Isc)：19.31A
Komponent samaradorligi：23.3%
Ikki tomonlama foyda：10%
Maksimal chiqish quvvati (Pmax)：759W
Optimal ishlatish kuchlanishi（Vmp）：39.6V
Optimal ishlash tok kuchi(Imp)：19.17A
Ochiq zanjir kuchlanishi (Voc)：47.5V
Qisqa tutashuv tok kuchi (Isc)：20.23A
Komponent samaradorligi：24.4%
Ikki tomonlama foyda：20%
Maksimal chiqish quvvati (Pmax)：828W
Optimal ishlatish kuchlanishi（Vmp）：39.6V
Optimal ishlash tok kuchi(Imp)：20.92A
Ochiq zanjir kuchlanishi (Voc)：47.5V
Qisqa tutashuv tok kuchi (Isc)：22.07A
Komponent samaradorligi：26.70%
Maksimal chiqish quvvati (Pmax)：700W
Optimal ishlatish kuchlanishi（Vmp）：40.0V
Optimal ishlash tok kuchi(Imp)：17.51A
Ochiq zanjir kuchlanishi (Voc)：47.9V
Qisqa tutashuv tok kuchi (Isc)：18.49A
Komponent samaradorligi：22.50%
Ikki tomonlama foyda：5%
Maksimal chiqish quvvati (Pmax)：730W
Optimal ishlatish kuchlanishi（Vmp）：40.0V
Optimal ishlash tok kuchi(Imp)：18.39A
Ochiq zanjir kuchlanishi (Voc)：47.9V
Qisqa tutashuv tok kuchi (Isc)：19.41A
Komponent samaradorligi：23.70%
Ikki tomonlama foyda：10%
Maksimal chiqish quvvati (Pmax)：770W
Optimal ishlatish kuchlanishi（Vmp）：40.0V
Optimal ishlash tok kuchi(Imp)：19.26A
Ochiq zanjir kuchlanishi (Voc)：47.9V
Qisqa tutashuv tok kuchi (Isc)：20.34A
Komponent samaradorligi：24.80%
Ikki tomonlama foyda：20%
Maksimal chiqish quvvati (Pmax)：840W
Optimal ishlatish kuchlanishi（Vmp）：40.0V
Optimal ishlash tok kuchi(Imp)：21.01A
Ochiq zanjir kuchlanishi (Voc)：47.9V
Qisqa tutashuv tok kuchi (Isc)：22.19A
Komponent samaradorligi：27.00%
