KLD-RS seriyali
maishiy energiyani saqlash
invertori IP65
past kuchlanishli versiyasi
Aqlli
barqaror
Ishonchli
bir/uch fazali
KLD-RS seriyali
maishiy energiyani saqlash
invertori IP65
past kuchlanishli versiyasi

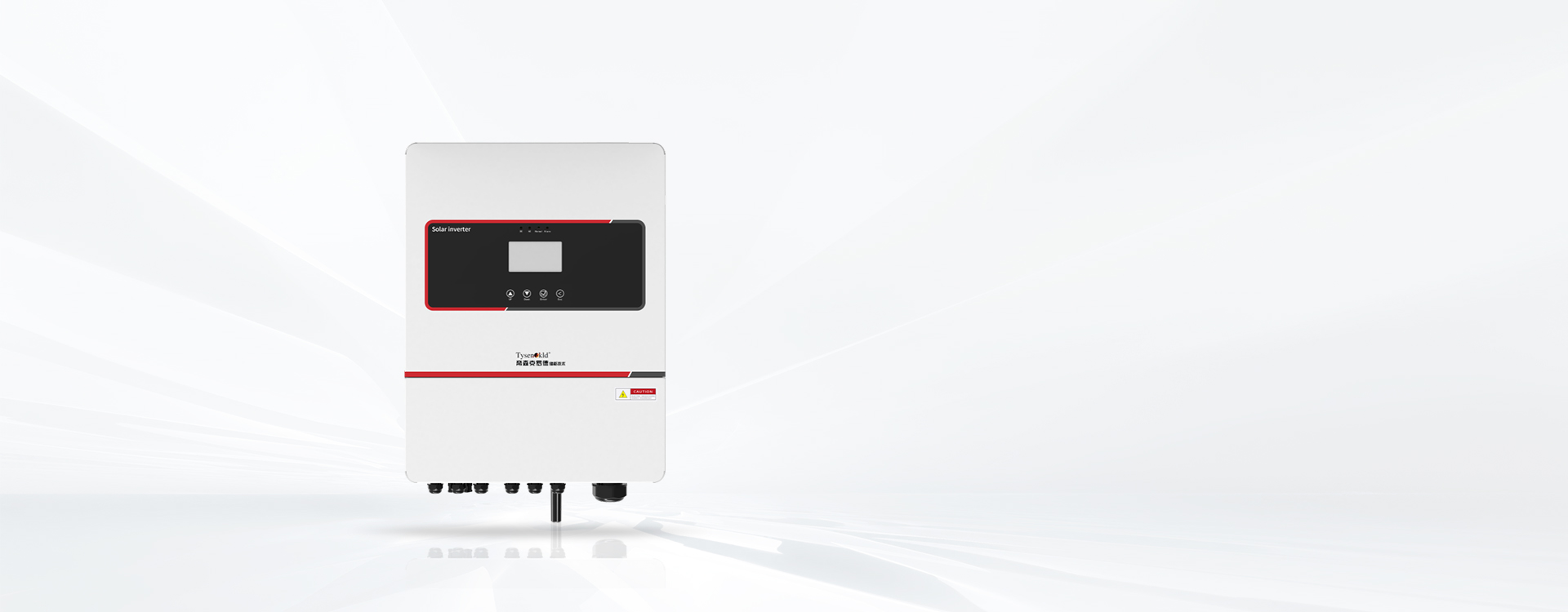

KLD-RS seriyali maishiy energiyani saqlash invertori (past kuchlanish), bir fazali quvvat diapazoni 1-8 kVt, uch fazali quvvat diapazoni 8-14 kVt, ikkalasi ham 20-60 V batareya modullari bilan mos keladi, butunlay muvozanatsiz yuklanmani qo‘llab-quvvatlaydi, himoya darajasi IP65 turli xil murakkab muhitlarga mos keladi, SPWM texnologiyasi orqali o‘zgarmas tokni o‘zgaruvchan tokka aylantirishni amalga oshiradi va uylar yoki kichik kompaniyalar uchun energiya yechimlarini taqdim etadi.

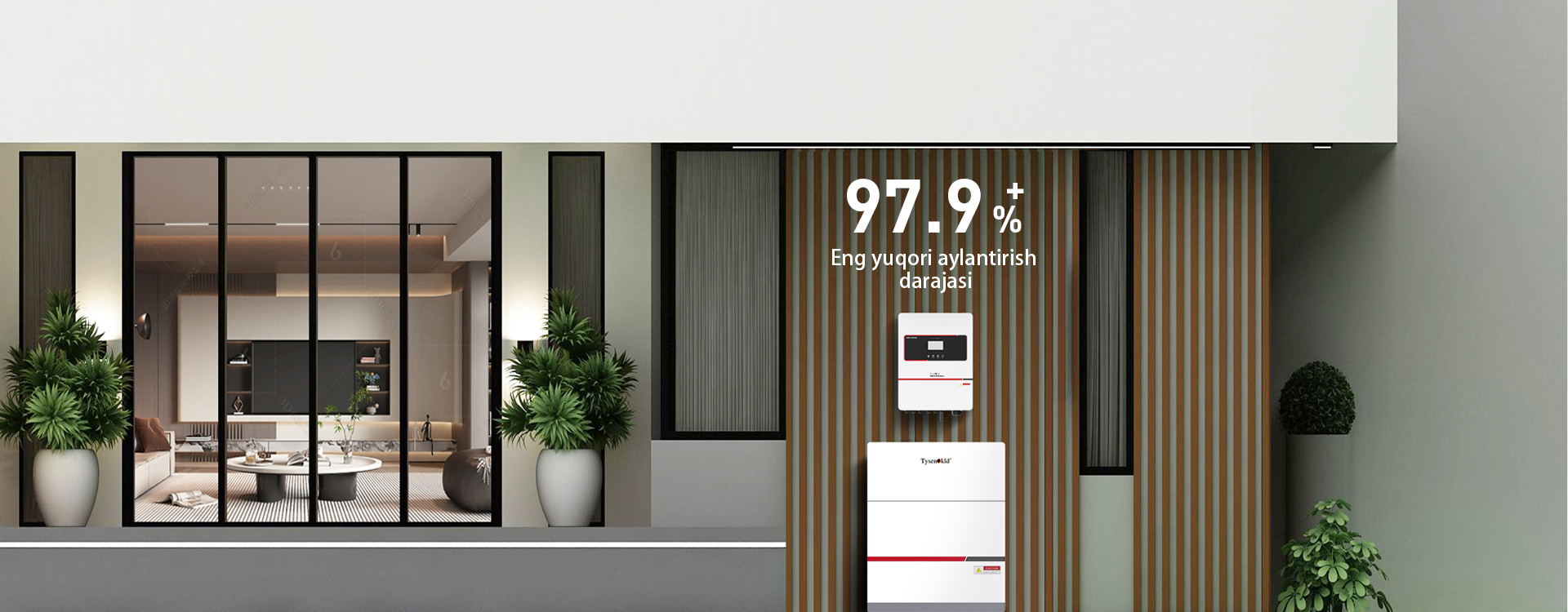

Ilg‘or quvvat elektronikasi texnologiyasi tufayli sanoatda yetakchi konversiya samaradorligi.
Aqlli komponent kontrolleri bilan ulanganda komponentlar darajasida optimal quvvat ishlab chiqarishga erishish mumkin.
O‘zgaruvchan tok/o‘zgarmas tok sakrashlaridan ikkilamchi himoya.

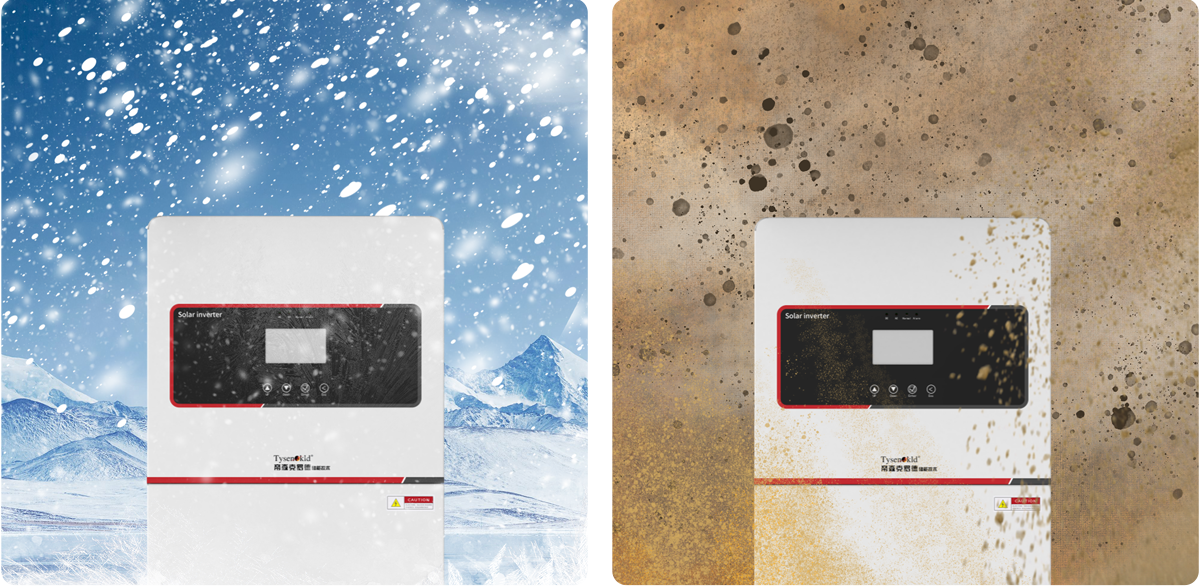

Himoya darajasi IP65 (yuqori harorat, qor, qum bo‘roni, yomg‘irli kun).
Parallel ulangan bir nechta batareyalarni qo‘llab-quvvatlash va BMS adaptiv zaryadlash strategiyasi turli batareyalar o‘rtasida zaryad muvozanatini ta’minlaydi.
| Mahsulot modeli | KLD-RS5kW-1-H | KLD-RS6kW-1-H | KLD-RS8kW-1-H |
| O‘chirish funksiyasi | Ha | ||
| Batareya parametrlari | |||
| Batareya kirishi | 1 | ||
| Batareya turi | Litiy batareya | ||
| Belgilangan batareya kuchlanishi | 51.2V | ||
| Batareya kuchlanish diapazoni | 42V-58V | ||
| Maksimal kuchlanish | 60V | ||
| Belgilangan zaryadlash-tushirish quvvati | 5kW | 6kW | 8kW |
| Maksimal zaryadlash-tushirish oqimi | 120A | 140A | 190A |
| Aloqa interfeysi | RS485/CAN | ||
| Fotovoltaik kirish | |||
| Fotovoltaik kirish yo'llari soni | 2 | ||
| Maksimal kirish quvvati | 7500Wp | 9000Wp | 12000Wp |
| Maksimal kirish kuchlanishi | 500V | ||
| Ishga tushirish kuchlanishi | 95V | 120V | |
| MPPT kuchlanish diapazoni | 150-425V | ||
| Belgilangan kuchlanish | 360V | ||
| MPPT miqdori | 2 | ||
| Har bir yo'l uchun MPPT kirish qatorlari soni | 1+1 | 2+1 | |
| Tarmoqqa ulanish parametri | |||
| Belgilangan chiqish | 5000W | 6000W | 8000W |
| Maksimal chiqish tok kuchi | 22.7A | 27.2A | 34.5A |
| Maksimal tarmoq kirish oqimi | 27.2A | 32.6A | 38.3A |
| Belgilangan tarmoqqa ulanish kuchlanishi | 220V/230V/240V | ||
| Tarmoq kuchlanish diapazoni | 184-264V | ||
| Belgilangan tarmoq chastotasi | 50/60Hz | ||
| Tarmoq chastota diapazoni | 45Hz-55Hz/55Hz-65Hz | ||
| Quvvat omili | 1 (0,8 yetakchi-0,8 kechikish) | ||
| THDi (Belgilangan quvvat) | ＜3% | ||
| Tarmoqsiz parametr | |||
| Belgilangan chiqish | 5kVA | 6kVA | 8kVA |
| Maksimal chiqish quvvati | 5kVA | 6kVA | 8kVA |
| Maksimal chiqish tok kuchi | 22.7A | 27.2A | 34.5A |
| Belgilangan chiqish kuchlanishi | 220V/230V/240V | ||
| Belgilangan tarmoq chastotasi | 50/60Hz | ||
| THDU (@ chiziqli yuklanma) | ＜2% | ||
| O'zgartirish vaqti | ＜20ms | ||
| Samaradorlik | |||
| Maksimal samaradorlik | 97% | ||
| Maksimal batareya zaryadlash-tushirish samaradorligi | 96% | ||
| Himoya darajasi | IP65 | ||
| Inson-kompyuter o'zaro ta'sir usuli | LED/APP/WIFI/4G/Bluetooth (ixtiyoriy) | ||
| Mahsulot modeli | KLD-RS10kW-3-H | KLD-RS12kW-3-H | KLD-RS14kW-3-H |
| AC chiqish parametrlari | |||
| Belgilangan chiqish | 10000W | 12000W | 14000W |
| Maksimal chiqish quvvati | 12000W | 13200W | 15400W |
| Peak power (off grid) | Nominal quvvatdan 2 barobar, 10S | Nominal quvvatdan 1,8 barobar, 10S | |
| AC chiqishi va belgilangan oqim | 15.2A/14.5A | 18.2A/17.4A | 21.1A/20.3A |
| Maksimal AC oqimi | 22.7A/21.7A | 27.3A/26.1A | 27.6A/26.4A |
| Belgilangan tarmoq kuchlanishi | 3L/N/PE 380V/400V | ||
| Samaradorlik | |||
| Maksimal samaradorlik | 97.90% | ||
| MPPT samaradorligi | 99.90% | ||
| Yevropa samaradorligi | 96.90% | ||
| Fotovoltaik kirish | |||
| Maksimal kirish quvvati | 15000W | 18000W | 20000W |
| Maksimal kirish kuchlanishi | 650V(160V-800V) | ||
| MPPT miqdori | 2 | ||
| Har bir MPPT uchun maksimal kirish qatori | 2+1 | ||
| MPPT kuchlanish diapazoni | 200-700V | ||
| To'liq yuk MPPT kuchlanish diapazoni | 250-850V | 290-850V | 350-850V |
| Belgilangan kirish kuchlanishi | 650V | ||
| Boshlanish kuchlanishi | 160V | ||
| Maksimal kirish tok kuchi | 26A/17A | ||
| Qisqa tutashuv tok kuchi | 34A/20A | ||
| Batareya parametrlari | |||
| Batareya kuchlanish diapazoni | 40-60V | ||
| Maksimal zaryadlash oqimi | 220A | 250A | 280A |
| Maksimal tushirish oqimi | 220A | 250A | 280A |
Eslatma: batafsil parametr uchun materialni yuklab olish sahifasiga qarang
O‘chirish funksiyasi：Ha
Batareya parametrlari
Batareya kirishi：1
Batareya turi：Litiy batareya
Belgilangan batareya kuchlanishi：51.2V
Batareya kuchlanish diapazoni：42V-58V
Maksimal kuchlanish：60V
Belgilangan zaryadlash-tushirish quvvati：5kW
Maksimal zaryadlash-tushirish oqimi：120A
Aloqa interfeysi：RS485/CAN
Fotovoltaik kirish
Fotovoltaik kirish yo'llari soni：2
Maksimal kirish quvvati：7500Wp
Maksimal kirish kuchlanishi：500V
Ishga tushirish kuchlanishi：95V
MPPT kuchlanish diapazoni：150-425V
Belgilangan kuchlanish：360V
MPPT miqdori：2
Har bir yo'l uchun MPPT kirish qatorlari soni ：1+1
Tarmoqqa ulanish parametri
Belgilangan chiqish：5000W
Maksimal chiqish tok kuchi：22.7A
Maksimal tarmoq kirish oqimi：27.2A
Belgilangan tarmoqqa ulanish kuchlanishi：220V/230V/240V
Tarmoq kuchlanish diapazoni：184-264V
Belgilangan tarmoq chastotasi：50/60Hz
Tarmoq chastota diapazoni：45Hz-55Hz/55Hz-65Hz
Quvvat omili：1 (0,8 yetakchi-0,8 kechikish)
THDI (nominal quvvat)：＜3%
Tarmoqsiz parametr
Belgilangan chiqish：5kVA
Maksimal chiqish quvvati：5kVA
Maksimal chiqish tok kuchi：22.7A
Belgilangan chiqish kuchlanishi：220V/230V/240V
Belgilangan tarmoq chastotasi：50/60Hz
THDU (@ chiziqli yuklanma)：＜2%
O'zgartirish vaqti：＜20ms
Samaradorlik
Maksimal samaradorlik：97%
Maksimal batareya zaryadlash-tushirish samaradorligi：96%
Himoya darajasi：IP65
Inson-kompyuter o'zaro ta'sir usuli：LED/APP/WIFI/4G/Bluetooth (ixtiyoriy)
O‘chirish funksiyasi：Ha
Batareya parametrlari
Batareya kirishi：1
Batareya turi：Litiy batareya
Belgilangan batareya kuchlanishi：51.2V
Batareya kuchlanish diapazoni：42V-58V
Maksimal kuchlanish：60V
Belgilangan zaryadlash-tushirish quvvati：6kW
Maksimal zaryadlash-tushirish oqimi：140A
Aloqa interfeysi：RS485/CAN
Fotovoltaik kirish
Fotovoltaik kirish yo'llari soni：2
Maksimal kirish quvvati：9000Wp
Maksimal kirish kuchlanishi：500V
Ishga tushirish kuchlanishi：95V
MPPT kuchlanish diapazoni：150-425V
Belgilangan kuchlanish：360V
MPPT miqdori：2
Har bir yo'l uchun MPPT kirish qatorlari soni ：1+1
Tarmoqqa ulanish parametri
Belgilangan chiqish：6000W
Maksimal chiqish tok kuchi：27.2A
Maksimal tarmoq kirish oqimi：27.2A
Belgilangan tarmoqqa ulanish kuchlanishi：220V/230V/240V
Tarmoq kuchlanish diapazoni：184-264V
Belgilangan tarmoq chastotasi：50/60Hz
Tarmoq chastota diapazoni：45Hz-55Hz/55Hz-65Hz
Quvvat omili：1 (0,8 yetakchi-0,8 kechikish)
THDI (nominal quvvat)：＜3%
Tarmoqsiz parametr
Belgilangan chiqish：6kVA
Maksimal chiqish quvvati：6kVA
Maksimal chiqish tok kuchi：27.2A
Belgilangan chiqish kuchlanishi：220V/230V/240V
Belgilangan tarmoq chastotasi：50/60Hz
THDU (@ chiziqli yuklanma)：＜2%
O'zgartirish vaqti：＜20ms
Samaradorlik
Maksimal samaradorlik：97%
Maksimal batareya zaryadlash-tushirish samaradorligi：96%
Himoya darajasi：IP65
Inson-kompyuter o'zaro ta'sir usuli：LED/APP/WIFI/4G/Bluetooth (ixtiyoriy)
O‘chirish funksiyasi：Ha
Batareya parametrlari
Batareya kirishi：1
Batareya turi：Litiy batareya
Belgilangan batareya kuchlanishi：51.2V
Batareya kuchlanish diapazoni：42V-58V
Maksimal kuchlanish：60V
Belgilangan zaryadlash-tushirish quvvati：8kW
Maksimal zaryadlash-tushirish oqimi：190A
Aloqa interfeysi：RS485/CAN
Fotovoltaik kirish
Fotovoltaik kirish yo'llari soni：2
Maksimal kirish quvvati：12000Wp
Maksimal kirish kuchlanishi：500V
Ishga tushirish kuchlanishi：120V
MPPT kuchlanish diapazoni：150-425V
Belgilangan kuchlanish：360V
MPPT miqdori：2
Har bir yo'l uchun MPPT kirish qatorlari soni ：2+1
Tarmoqqa ulanish parametri
Belgilangan chiqish：8000W
Maksimal chiqish tok kuchi：34.5A
Maksimal tarmoq kirish oqimi：38.3A
Belgilangan tarmoqqa ulanish kuchlanishi：220V/230V/240V
Tarmoq kuchlanish diapazoni：184-264V
Belgilangan tarmoq chastotasi：50/60Hz
Tarmoq chastota diapazoni：45Hz-55Hz/55Hz-65Hz
Quvvat omili：1 (0,8 yetakchi-0,8 kechikish)
THDI (nominal quvvat)：＜3%
Tarmoqsiz parametr
Belgilangan chiqish：8kVA
Maksimal chiqish quvvati：8kVA
Maksimal chiqish tok kuchi：34.5A
Belgilangan chiqish kuchlanishi：220V/230V/240V
Belgilangan tarmoq chastotasi：50/60Hz
THDU (@ chiziqli yuklanma)：＜2%
O'zgartirish vaqti：＜20ms
Samaradorlik
Maksimal samaradorlik：97%
Maksimal batareya zaryadlash-tushirish samaradorligi：96%
Himoya darajasi：IP65
Inson-kompyuter o'zaro ta'sir usuli：LED/APP/WIFI/4G/Bluetooth (ixtiyoriy)
AC chiqish parametrlari
Belgilangan chiqish：10000W
Maksimal chiqish quvvati：12000W
Maksimal quvvat (elektr tarmog‘siz): Nominal quvvatdan 2 barobar, 10S
AC chiqishi va belgilangan oqim：15.2A/14.5A
Maksimal AC oqimi：22.7A/21.7A
Belgilangan tarmoq kuchlanishi：3L/N/PE 380V/400V
Samaradorlik
Maksimal samaradorlik：97.90%
MPPT samaradorligi：99.90%
Yevropa samaradorligi：96.90%
Fotovoltaik kirish
Maksimal kirish quvvati：15000W
Maksimal kirish kuchlanishi：650V(160V-800V)
MPPT miqdori：2
Har bir MPPT uchun maksimal kirish qatori：2+1
MPPT kuchlanish diapazoni：200-700V
To'liq yuk MPPT kuchlanish diapazoni：250-850V
Nominal kirish kuchlanishi：650V
Boshlanish kuchlanishi：160V
Maksimal kirish tok kuchi：26A/17A
Qisqa tutashuv tok kuchi：34A/20A
Batareya parametrlari
Batareya kuchlanish diapazoni：40-60V
Maksimal zaryadlash oqimi：220A
Maksimal tushirish oqimi：220A
AC chiqish parametrlari
Belgilangan chiqish：12000W
Maksimal chiqish quvvati：13200W
Maksimal quvvat (elektr tarmog‘siz): Nominal quvvatdan 2 barobar, 10S
AC chiqishi va belgilangan oqim：18.2A/17.4A
Maksimal AC oqimi：27.3A/26.1A
Belgilangan tarmoq kuchlanishi：3L/N/PE 380V/400V
Samaradorlik
Maksimal samaradorlik：97.90%
MPPT samaradorligi：99.90%
Yevropa samaradorligi：96.90%
Fotovoltaik kirish
Maksimal kirish quvvati：18000W
Maksimal kirish kuchlanishi：650V(160V-800V)
MPPT miqdori：2
Har bir MPPT uchun maksimal kirish qatori：2+1
MPPT kuchlanish diapazoni：200-700V
To'liq yuk MPPT kuchlanish diapazoni：290-850V
Nominal kirish kuchlanishi：650V
Boshlanish kuchlanishi：160V
Maksimal kirish tok kuchi：26A/17A
Qisqa tutashuv tok kuchi：34A/20A
Batareya parametrlari
Batareya kuchlanish diapazoni：40-60V
Maksimal zaryadlash oqimi：250A
Maksimal tushirish oqimi：250A
AC chiqish parametrlari
Belgilangan chiqish：14000W
Maksimal chiqish quvvati：15400W
Maksimal quvvat (elektr tarmog‘siz): Nominal quvvatdan 1,8 barobar, 10S
AC chiqishi va belgilangan oqim：21.1A/20.3A
Maksimal AC oqimi：27.6A/26.4A
Belgilangan tarmoq kuchlanishi：3L/N/PE 380V/400V
Samaradorlik
Maksimal samaradorlik：97.90%
MPPT samaradorligi：99.90%
Yevropa samaradorligi：96.90%
Fotovoltaik kirish
Maksimal kirish quvvati：20000W
Maksimal kirish kuchlanishi：650V(160V-800V)
MPPT miqdori：2
Har bir MPPT uchun maksimal kirish qatori：2+1
MPPT kuchlanish diapazoni：200-700V
To'liq yuk MPPT kuchlanish diapazoni：350-850V
Nominal kirish kuchlanishi：650V
Boshlanish kuchlanishi：160V
Maksimal kirish tok kuchi：26A/17A
Qisqa tutashuv tok kuchi：34A/20A
Batareya parametrlari
Batareya kuchlanish diapazoni：40-60V
Maksimal zaryadlash oqimi：280A
Maksimal tushirish oqimi：280A
