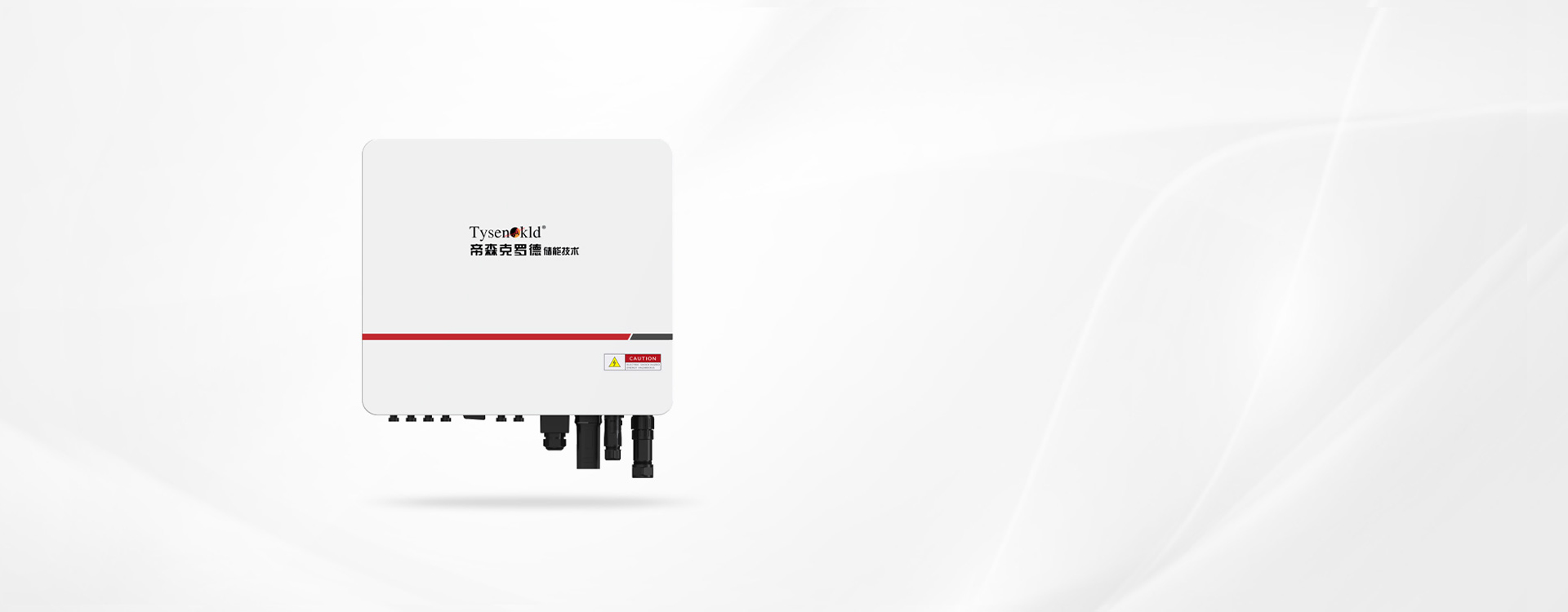

KLD-WS seriyali

maishiy energiyani
saqlash invertori,

uch fazali yuqori
kuchlanish versiyasi

3-50kVt

Samarali barqaror Ishonchli

Mahsulotning qisqacha bayoni

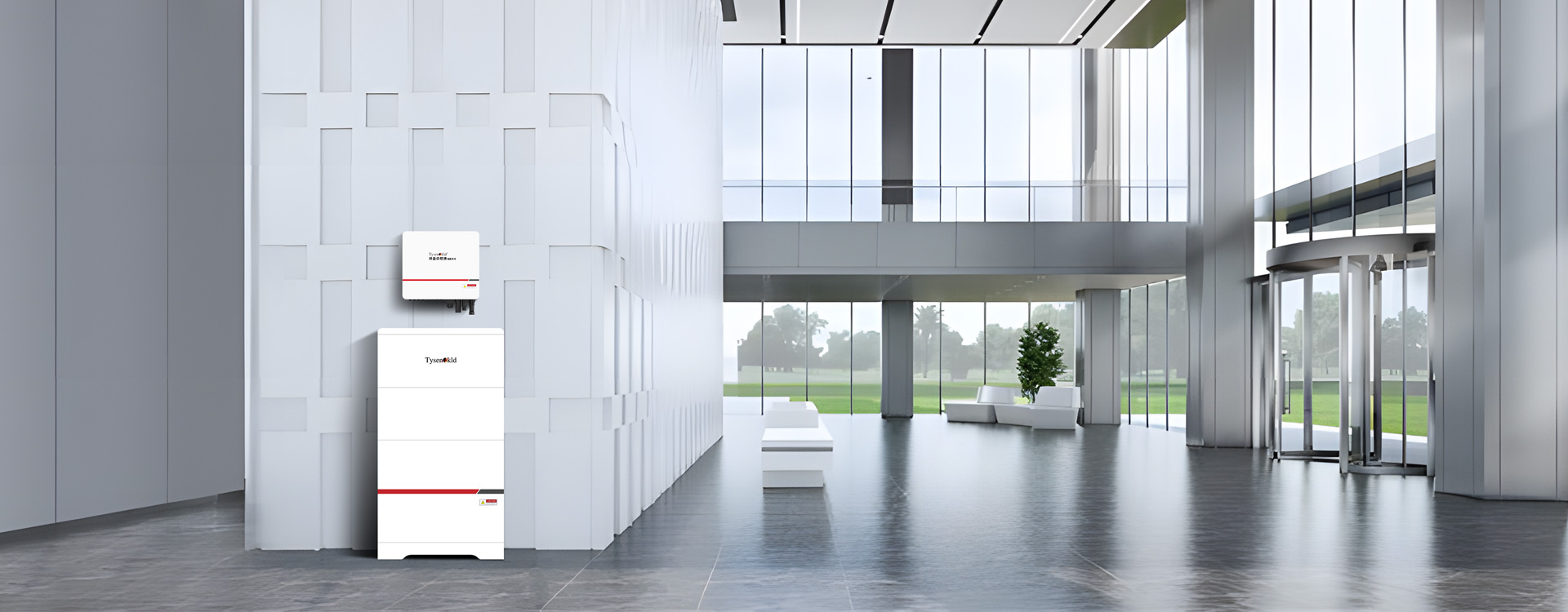

KLD-WS seriyali uch fazali maishiy energiyani saqlash invertori (yuqori kuchlanish), quvvat diapazoni 3-50 kVt, 150-800V batareyalar modullari bilan mos keladi, IP65 himoya darajasi turli xil murakkab muhitlarga moslasha oladi, SPWM texnologiyasi orqali o‘zgarmas tokni o‘zgaruvchan tokka aylantirishni amalga oshiradi, keng quvvat diapazoni, ular orasida yuqori quvvatli modullar sanoat, savdo / park kabi kichik va o‘rtacha quvvat sarflaydigan joylar uchun energiya yechimlarini taqdim etishi mumkin.

Mahsulot xususiyatlari

Uch fazali sozlash
Mukammal mos keladi
Aqlli boshqaruv
Xavfsiz va ishonchli
Moslashuvchan aloqa

Yuqori hosil

Ilg‘or quvvat elektronikasi texnologiyasi tufayli sanoatda yetakchi aylantirish samaradorligi.
Aqlli komponent kontrolleri bilan ulanganda komponentlar darajasida optimal quvvat ishlab chiqarishga erishish mumkin.

Xavfsiz va ishonchli

O‘zgaruvchan tok/o‘zgarmas tok sakrashlaridan ikkilamchi himoya.

Barcha ekstremal muhit va iqlim sharoitida barqaror ishlash

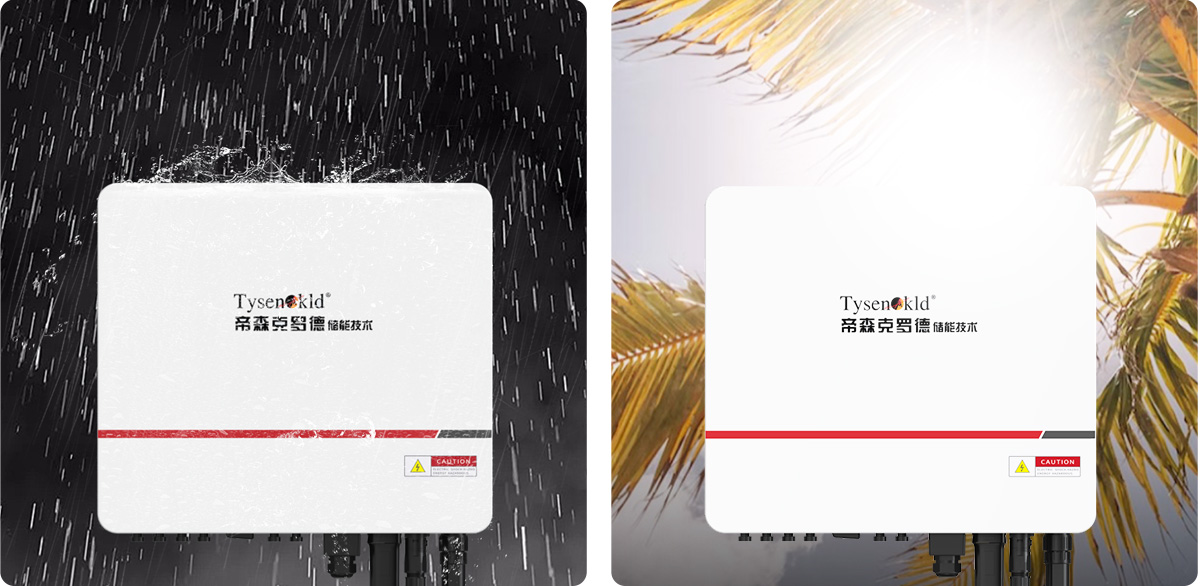

Himoya darajasi IP65 (yuqori harorat, qor, qum bo‘roni, yomg‘irli kun).

Mukammal mos keladi

Parallel ulangan bir nechta batareyalarni qo‘llab-quvvatlash va BMS adaptiv zaryadlash strategiyasi turli batareyalar o‘rtasida zaryad muvozanatini ta’minlaydi.

Texnik parametrlar

Mahsulot modeli KLD-WS20kW-3-H KLD-WS25kW-3-H KLD-WS30kW-3-H KLD-WS40kW-3-H KLD-WS50kW-3-H
Tarmoqdagi va tarmoqdan tashqaridagi parametrlari
Belgilangan chiqish 20kVA 25kVA 30kVA 40kVA 50kVA
Maksimal tarmoq kirish quvvati 30kVA 37.5kVA 45kVA 80kVA 100kVA
Maksimal chiqish tok kuchi 32A 40A 48A 66.77A 83.38A
Belgilangan tarmoq kuchlanishi 3L/N/PE,220/380V.230/400V,240/415V
Tarmoq kuchlanish diapazoni 184-276V
Fotovoltaik kirish
Maksimal kirish quvvati 30kWp 37.5kWp 45kWp 60kWp 75kWp
Maksimal kirish kuchlanishi 1000V
MPPT miqdori 2 4
Har bir yo'l uchun MPPT DC terminallar soni 4 8
MPPT kuchlanish diapazoni 150-850V
To'liq yuk MPPT kuchlanish diapazoni 500-850V
Nominal kirish kuchlanishi 620V
Ishga tushirish kuchlanishi 160V
Maksimal kirish tok kuchi 32*2 40*2 40*2 40*4
Qisqa tutashuv tok kuchi 48*2 60*2 60*2 48*2
Batareya parametrlari
Batareya kuchlanish diapazoni 150-800V
Maksimal zaryadlash-tushirish oqimi 50A 60A 60A 120A
Maksimal zaryadlash va zaryadsizlanish quvvati 20kW 25kW 30kW 40kW 50kW
Zaryadlash-tushirish samaradorligi 98%
Umumiy parametrlar
Xitoy samaradorligi 97.80% 98% 98.10% 98.30%
Maksimal samaradorlik 98.30% 98.50% 98.60%
Himoya darajasi IP65

Eslatma: batafsil parametr uchun materialni yuklab olish sahifasiga qarang

Texnik parametrlar

  • Tarmoqdagi va tarmoqdan tashqaridagi parametrlari

    Belgilangan chiqish：20kVA

    Maksimal tarmoq kirish quvvati：30kVA

    Maksimal chiqish tok kuchi：32A

    Belgilangan tarmoq kuchlanishi：3L/N/PE,220/380V.230/400V,240/415V

    Tarmoq kuchlanish diapazoni：184-276V

    Fotovoltaik kirish

    Maksimal kirish quvvati：30kWp

    Maksimal kirish kuchlanishi：1000V

    MPPT miqdori：2

    Har bir yo'l uchun MPPT DC terminallar soni：4

    MPPT kuchlanish diapazoni：150-850V

    To'liq yuk MPPT kuchlanish diapazoni：500-850V

    Nominal kirish kuchlanishi：620V

    Ishga tushirish kuchlanishi：160V

    Maksimal kirish tok kuchi：32*2

    Qisqa tutashuv tok kuchi：48*2

    Batareya parametrlari

    Batareya kuchlanish diapazoni：150-800V

    Maksimal zaryadlash-tushirish oqimi：50A

    Maksimal zaryadlash va zaryadsizlanish quvvati：20kW

    Zaryadlash-tushirish samaradorligi：98%

    Umumiy parametrlar

    Xitoy samaradorligi：97.80%

    Maksimal samaradorlik：98.30%

    Himoya darajasi：IP65

  • Tarmoqdagi va tarmoqdan tashqaridagi parametrlari

    Belgilangan chiqish：25kVA

    Maksimal tarmoq kirish quvvati：37.5kVA

    Maksimal chiqish tok kuchi：40A

    Belgilangan tarmoq kuchlanishi：3L/N/PE,220/380V.230/400V,240/415V

    Tarmoq kuchlanish diapazoni：184-276V

    Fotovoltaik kirish

    Maksimal kirish quvvati：37.5kWp

    Maksimal kirish kuchlanishi：1000V

    MPPT miqdori：2

    Har bir yo'l uchun MPPT DC terminallar soni：4

    MPPT kuchlanish diapazoni：150-850V

    To'liq yuk MPPT kuchlanish diapazoni：500-850V

    Nominal kirish kuchlanishi：620V

    Ishga tushirish kuchlanishi：160V

    Maksimal kirish tok kuchi：40*2

    Qisqa tutashuv tok kuchi：60*2

    Batareya parametrlari

    Batareya kuchlanish diapazoni：150-800V

    Maksimal zaryadlash-tushirish oqimi：60A

    Maksimal zaryadlash va zaryadsizlanish quvvati：25kW

    Zaryadlash-tushirish samaradorligi：98%

    Umumiy parametrlar

    Xitoy samaradorligi：98%

    Maksimal samaradorlik：98.50%

    Himoya darajasi：IP65

  • Tarmoqdagi va tarmoqdan tashqaridagi parametrlari

    Belgilangan chiqish：30kVA

    Maksimal tarmoq kirish quvvati：45kVA

    Maksimal chiqish tok kuchi：48A

    Belgilangan tarmoq kuchlanishi：3L/N/PE,220/380V.230/400V,240/415V

    Tarmoq kuchlanish diapazoni：184-276V

    Fotovoltaik kirish

    Maksimal kirish quvvati：45kWp

    Maksimal kirish kuchlanishi：1000V

    MPPT miqdori：2

    Har bir yo'l uchun MPPT DC terminallar soni：4

    MPPT kuchlanish diapazoni：150-850V

    To'liq yuk MPPT kuchlanish diapazoni：500-850V

    Nominal kirish kuchlanishi：620V

    Ishga tushirish kuchlanishi：160V

    Maksimal kirish tok kuchi：40*2

    Qisqa tutashuv tok kuchi：60*2

    Batareya parametrlari

    Batareya kuchlanish diapazoni：150-800V

    Maksimal zaryadlash-tushirish oqimi：60A

    Maksimal zaryadlash va zaryadsizlanish quvvati：30kW

    Zaryadlash-tushirish samaradorligi：98%

    Umumiy parametrlar

    Xitoy samaradorligi：98.10%

    Maksimal samaradorlik：98.50%

    Himoya darajasi：IP65

  • Tarmoqdagi va tarmoqdan tashqaridagi parametrlari

    Belgilangan chiqish：40kVA

    Maksimal tarmoq kirish quvvati：80kVA

    Maksimal chiqish tok kuchi：66.77A

    Belgilangan tarmoq kuchlanishi：3L/N/PE,220/380V.230/400V,240/415V

    Tarmoq kuchlanish diapazoni：184-276V

    Fotovoltaik kirish

    Maksimal kirish quvvati：60kWp

    Maksimal kirish kuchlanishi：1000V

    MPPT miqdori：4

    Har bir yo'l uchun MPPT DC terminallar soni：8

    MPPT kuchlanish diapazoni：150-850V

    To'liq yuk MPPT kuchlanish diapazoni：500-850V

    Nominal kirish kuchlanishi：620V

    Ishga tushirish kuchlanishi：160V

    Maksimal kirish tok kuchi：40*4

    Qisqa tutashuv tok kuchi：48*2

    Batareya parametrlari

    Batareya kuchlanish diapazoni：150-800V

    Maksimal zaryadlash-tushirish oqimi：120A

    Maksimal zaryadlash va zaryadsizlanish quvvati：40kW

    Zaryadlash-tushirish samaradorligi：98%

    Umumiy parametrlar

    Xitoy samaradorligi：98.30%

    Maksimal samaradorlik：98.60%

    Himoya darajasi：IP65

  • Tarmoqdagi va tarmoqdan tashqaridagi parametrlari

    Belgilangan chiqish：50kVA

    Maksimal tarmoq kirish quvvati：100kVA

    Maksimal chiqish tok kuchi：83.38A

    Belgilangan tarmoq kuchlanishi：3L/N/PE,220/380V.230/400V,240/415V

    Tarmoq kuchlanish diapazoni：184-276V

    Fotovoltaik kirish

    Maksimal kirish quvvati：75kWp

    Maksimal kirish kuchlanishi：1000V

    MPPT miqdori：4

    Har bir yo'l uchun MPPT DC terminallar soni：8

    MPPT kuchlanish diapazoni：150-850V

    To'liq yuk MPPT kuchlanish diapazoni：500-850V

    Nominal kirish kuchlanishi：620V

    Ishga tushirish kuchlanishi：160V

    Maksimal kirish tok kuchi：40*4

    Qisqa tutashuv tok kuchi：48*2

    Batareya parametrlari

    Batareya kuchlanish diapazoni：150-800V

    Maksimal zaryadlash-tushirish oqimi：120A

    Maksimal zaryadlash va zaryadsizlanish quvvati：50kW

    Zaryadlash-tushirish samaradorligi：98%

    Umumiy parametrlar

    Xitoy samaradorligi：98.30%

    Maksimal samaradorlik：98.60%

    Himoya darajasi：IP65
